S2_LP SMPS inductor

[Adalgiso]

Hi,

We want to use the S2-LP with embedded SMPS enabled. The recommended inductor value is 10uH.

We need to lower the inductor value. I have read  that it would be possible to reduce the inductor value to 2.2uF in  the AN5246

How to use SMPS to improve power efficiency on STM32WB MCUs

https://www.st.com/resource/en/application_note/an5246-usage-of-smps-on-stm32wb-series-microcontrollers-stmicroelectronics.pdf

Would this be valid also for the S2_LP transceiver?

[Cyril BLARD]

Hi,

no 2.2µH coil can NOT be used for S2LP transceiver SMPS block. It is not the same design than WB MCUs.

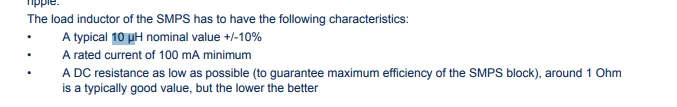

You MUST follow the characteristics described in S2LP datasheet:



regards

Cyril
