SPSGRF-915 Different Marking questions

  • August 21, 2023
  • 2 replies
  • 1805 views

Hi

We got some parts of SPSGRF-915, they have different Marking 1 and Marking 2, I attached photos for your reference.

Marking 1: SPSGRF-915 (Full Marking and the label shows the Full MPN SPSGRF-915)

Marking 1.JPG








Marking 2: SPSGRF (Without “-915”, but the label shows the Full MPN SPSGRF-915)

Marking 2.jpg



What is the different?
We want to verify that Marking 1 and Marking 2 have the same functionality?
Also, what mean for this different markings? Are they the same part?

Thank you

This topic has been closed for replies.

2 replies

RhSilicon
Lead
August 21, 2023

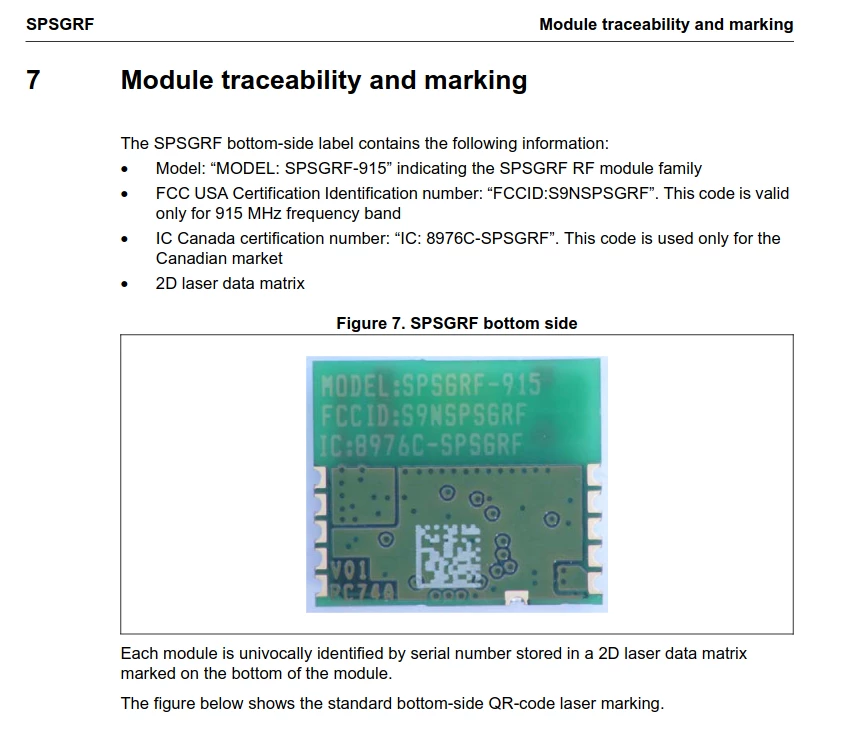

Apparently the "-915" characters were made with a CNC drill. Perhaps both are clones. The datasheet shows the complete code made directly on the board layout:


TLi.8
TLi.8Author
Associate II
August 21, 2023

It is possible that different date codes produce different Marking?
We are concerned that they are not the same parts, can you provide some more accurate indication that they are clones.

Marking 1 Date Code is 23+
Marking 2 Date Code is 19+/18+

RhSilicon
Lead
August 21, 2023

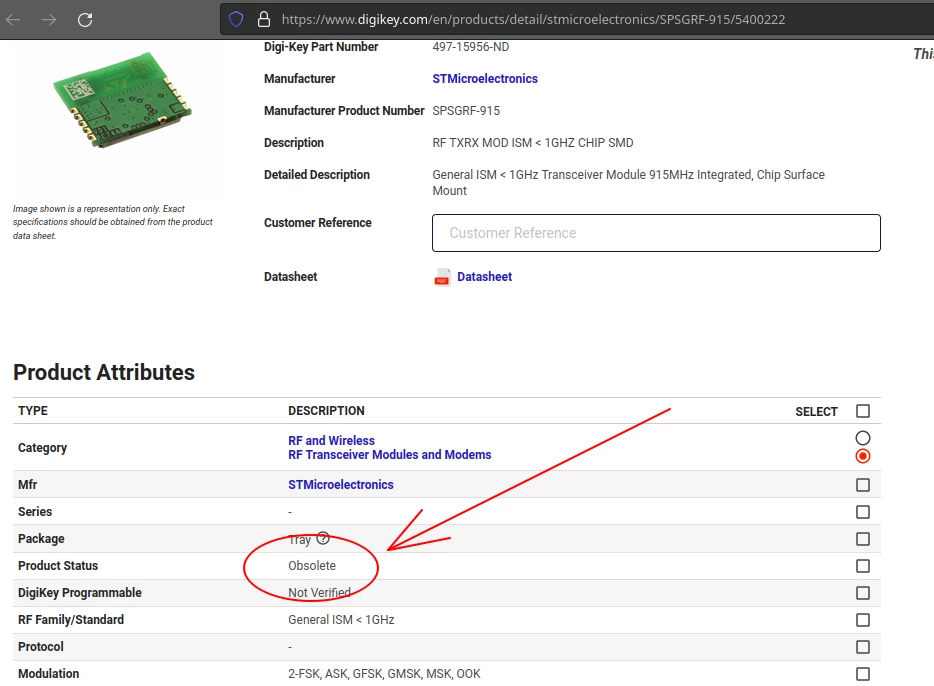

I found the status of Obsolete, maybe that's why some manufacturer could be reproducing it:


RhSilicon
Lead
August 21, 2023
TLi.8
TLi.8Author
Associate II
August 21, 2023

Thanks for sharing this information. Yes, we know it's OBS part.
Anyway, do you know how to get engineer from STM to reply to this question?
We hope to get some more accurate PDF to verify it, or if STM engineers can approve it, then we will be more confident to use these parts.
