x-nucleo-idb05a2 X-CUBE-BLE1 hangs in interrupt handler after hard reset

[Avan .12]

I connected the x-nucleo-idb05a2 to a nucleo L452RE-P board and configured the project using X-CUBE-BLE1 and BLE sample application.

I got it all working (IRQ, RESET, MISO, MOSI) after making sure that there was a required hard reset to start the BLUENRG chip, however the ISR calls eventually :

HCI_TL_SPI_Receive() to fetch initial data by sending {0x0b, 0x00, 0x00, 0x00, 0x00} to initiate a read.

The returned read buffer "header_slave" contains {0x00, 0x02, 0x07, 0x0F, 0x00} which gets rejected because the first byte must 0x02.

This means that the data caused by the first interrupt after a hard reset won't be retrieved which means that the hci_tl_lowlevel_isr() will keep looping forever because the GPIO pin stays high (IsDataAvailable())

What could be the reason why the data from the BLUENRG returns an unexpected value?

Thanks in advance

[Silvio]

Hello,

which application are you testing?

Have you started configuring for your board, through the STM32CubeMX tool, one of the BLE1 sample applications?

BR

Silvio

[Avan .12]

Hi Silvo,

which application are you testing? Answer : SensorDemoBLESensor

Have you started configuring for your board, through the STM32CubeMX tool, one of the BLE1 sample applications? Answer : yes

Could it be that I need to intinialize the Bluenrg first using IFR first before I can use the chip or will it always work right out the box?

I am using STM32CubeMX version 6.6.0, STM32CubeIDe 1.9.0 and X-Cube-BLE1 6.2.3

Thanks

[Silvio]

Hi Avan,

the BlueNRG device works right out of the box.

You could anyway update it to latest version following the steps below:

• generate a Virtual_COM_Port project for your board with STM32CubeMX (or use the Virtual_COM_Port binary file for the NUCLEO-L476RG, if you have this board, included in the X-CUBE-BLE1 package)
• launch the BlueNRG GUI
• Settings --> baud rate 115200
• Settings --> FW Stack version --> BlueNRG-MS Fw v7.x
• Open the COM Port connection
• Tools --> Stack Updater --> Browse --> bluenrg_7_3a_Mode_2-32MHz-XO32K_4M.img
• Update

At the end of the updating process you should see at the top-right of BlueNRG GUI the following information: BlueNRG-MS FW v7.3a.

Otherwise, if you have the NUCLEO-L476RG, you could directly use the SensorDemo_BLESensor-App binary file in the X-CUBE-BLE1 to verify that your BlueNRG device is working.

BR

Silvio

[Avan .12]

To make an update requires a functional board which is not the case.

​

What is the reason why i get the invalid resonse that doesn't start with the required 0x02?

[Silvio]

Have you followed all steps in the Getting Started Guide in the X-CUBE-BLE1 pack (folder Documentation) to configure the SensorDemoBLESensor application for your board?

Please, use the same Guide to easily generate the Virtual_COM_Port sample application for your board.

BR

Silvio

[Avan .12]

I followed ​https://youtu.be/jGljm6nxW9s

​

Using spi2 pb10 clk pc2 miso pc3 mosi pa0 irq pa8 reset pc13 blue push pb13 led pa2/pa3 uart2​ on a nucleo l452 board

[Avan .12]

I found it: in cubemx the default spi data size was set to 4 bits instead of 8 bits​

[Silvio]

Good!

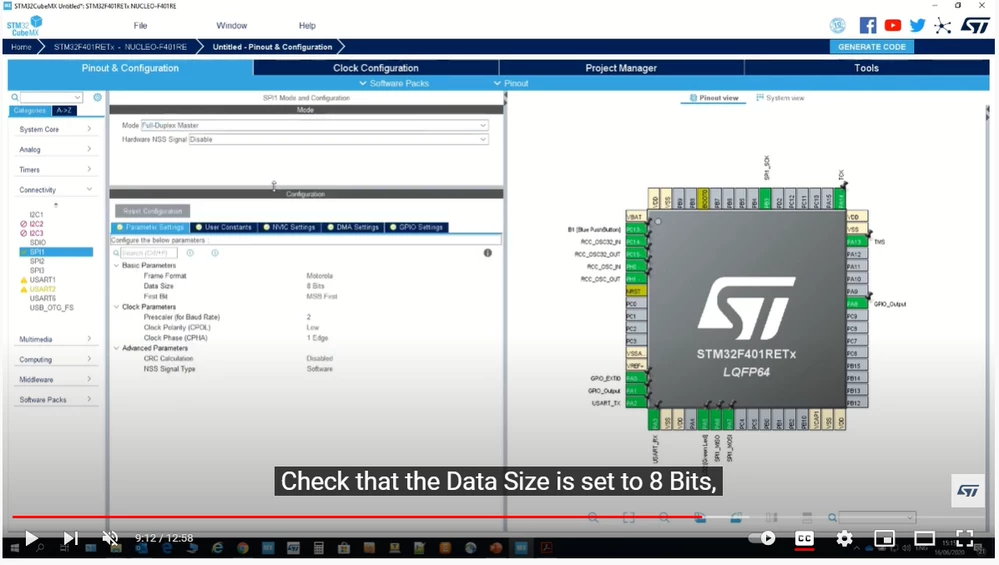

This information is indeed reported in the Getting Started Guide



and in the webinar as well



Enjoy your STM32 application!

BR

Silvio
