Build fails on NUCLEO-WBA55CG after enabling X-CUBE-MEMS

[kclauah]

Hello,

I have been working with a NUCLEO-WBA55CG board and the X-NUCLEO-IKS02A1 expansion board. I am running into an issue where the project fails to build after I enable the X-CUBE-MEMS software pack.

Here are the steps to reproduce the problem:

1. In STM32CubeIDE, create a new STM32 project using the "Board Selector" for the NUCLEO-WBA55CG.
2. In the Pinout & Configuration view, enable the I2C1 peripheral and assign it to pins PB1 and PB2.
3. Under "Software Packs," enable X-CUBE-MEMS1 for the IKS02A1 and select I2C1 as the communication interface.
4. Generate the code and build the project.

After building, I receive the following error messages in the console.

../Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.c: In function 'BSP_PB_Init':
../Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.c:316:56: error: 'BSP_B1_IT_PRIORITY' undeclared (first use in this function)
 316 | uint32_t BSP_BUTTON_IT_PRIO[BUTTONn] = {BSP_B1_IT_PRIORITY,
 | ^~~~~~~~~~~~~~~~~~
../Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.c:316:56: note: each undeclared identifier is reported only once for each function it appears in
arm-none-eabi-gcc "../Core/Src/stm32wbaxx_hal_msp.c" -mcpu=cortex-m33 -std=gnu11 -g3 -DDEBUG -DUSE_NUCLEO_64 -DUSE_HAL_DRIVER -DSTM32WBA55xx -c -I../Core/Inc -I../Drivers/STM32WBAxx_HAL_Driver/Inc -I../Drivers/STM32WBAxx_HAL_Driver/Inc/Legacy -I../Drivers/BSP/STM32WBAxx_Nucleo -I../Drivers/CMSIS/Device/ST/STM32WBAxx/Include -I../Drivers/CMSIS/Include -I../X-CUBE-MEMS1/Target -I../Drivers/BSP/Components/ism330dhcx -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -MMD -MP -MF"Core/Src/stm32wbaxx_hal_msp.d" -MT"Core/Src/stm32wbaxx_hal_msp.o" --specs=nano.specs -mfpu=fpv5-sp-d16 -mfloat-abi=hard -mthumb -o "Core/Src/stm32wbaxx_hal_msp.o"
../Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.c:317:56: error: 'BSP_B2_IT_PRIORITY' undeclared (first use in this function)
 317 | BSP_B2_IT_PRIORITY,
 | ^~~~~~~~~~~~~~~~~~
../Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.c:318:56: error: 'BSP_B3_IT_PRIORITY' undeclared (first use in this function)
 318 | BSP_B3_IT_PRIORITY};
 | ^~~~~~~~~~~~~~~~~~
arm-none-eabi-gcc "../Core/Src/stm32wbaxx_it.c" -mcpu=cortex-m33 -std=gnu11 -g3 -DDEBUG -DUSE_NUCLEO_64 -DUSE_HAL_DRIVER -DSTM32WBA55xx -c -I../Core/Inc -I../Drivers/STM32WBAxx_HAL_Driver/Inc -I../Drivers/STM32WBAxx_HAL_Driver/Inc/Legacy -I../Drivers/BSP/STM32WBAxx_Nucleo -I../Drivers/CMSIS/Device/ST/STM32WBAxx/Include -I../Drivers/CMSIS/Include -I../X-CUBE-MEMS1/Target -I../Drivers/BSP/Components/ism330dhcx -O0 -ffunction-sections -fdata-sections -Wall -fstack-usage -fcyclomatic-complexity -MMD -MP -MF"Core/Src/stm32wbaxx_it.d" -MT"Core/Src/stm32wbaxx_it.o" --specs=nano.specs -mfpu=fpv5-sp-d16 -mfloat-abi=hard -mthumb -o "Core/Src/stm32wbaxx_it.o"
make: *** [Drivers/BSP/STM32WBAxx_Nucleo/subdir.mk:19: Drivers/BSP/STM32WBAxx_Nucleo/stm32wbaxx_nucleo.o] Error 1
make: *** Waiting for unfinished jobs....
../Core/Src/main.c:44:1: error: unknown type name 'COM_InitTypeDef'; did you mean 'I2C_InitTypeDef'?
 44 | COM_InitTypeDef BspCOMInit;
 | ^~~~~~~~~~~~~~~
 | I2C_InitTypeDef
../Core/Src/main.c: In function 'main':
../Core/Src/main.c:108:13: error: request for member 'BaudRate' in something not a structure or union
 108 | BspCOMInit.BaudRate = 115200;
 | ^
../Core/Src/main.c:109:13: error: request for member 'WordLength' in something not a structure or union
 109 | BspCOMInit.WordLength = COM_WORDLENGTH_8B;
 | ^
../Core/Src/main.c:109:27: error: 'COM_WORDLENGTH_8B' undeclared (first use in this function); did you mean 'UART_WORDLENGTH_8B'?
 109 | BspCOMInit.WordLength = COM_WORDLENGTH_8B;
 | ^~~~~~~~~~~~~~~~~
 | UART_WORDLENGTH_8B
../Core/Src/main.c:109:27: note: each undeclared identifier is reported only once for each function it appears in
../Core/Src/main.c:110:13: error: request for member 'StopBits' in something not a structure or union
 110 | BspCOMInit.StopBits = COM_STOPBITS_1;
 | ^
../Core/Src/main.c:110:27: error: 'COM_STOPBITS_1' undeclared (first use in this function); did you mean 'UART_STOPBITS_1'?
 110 | BspCOMInit.StopBits = COM_STOPBITS_1;
 | ^~~~~~~~~~~~~~
 | UART_STOPBITS_1
../Core/Src/main.c:111:13: error: request for member 'Parity' in something not a structure or union
 111 | BspCOMInit.Parity = COM_PARITY_NONE;
 | ^
../Core/Src/main.c:111:27: error: 'COM_PARITY_NONE' undeclared (first use in this function); did you mean 'UART_PARITY_NONE'?
 111 | BspCOMInit.Parity = COM_PARITY_NONE;
 | ^~~~~~~~~~~~~~~
 | UART_PARITY_NONE
../Core/Src/main.c:112:13: error: request for member 'HwFlowCtl' in something not a structure or union
 112 | BspCOMInit.HwFlowCtl = COM_HWCONTROL_NONE;
 | ^
../Core/Src/main.c:112:27: error: 'COM_HWCONTROL_NONE' undeclared (first use in this function); did you mean 'UART_HWCONTROL_NONE'?
 112 | BspCOMInit.HwFlowCtl = COM_HWCONTROL_NONE;
 | ^~~~~~~~~~~~~~~~~~
 | UART_HWCONTROL_NONE
../Core/Src/main.c:113:7: warning: implicit declaration of function 'BSP_COM_Init'; did you mean 'BSP_PB_Init'? [-Wimplicit-function-declaration]
 113 | if (BSP_COM_Init(COM1, &BspCOMInit) != BSP_ERROR_NONE)
 | ^~~~~~~~~~~~
 | BSP_PB_Init
../Core/Src/main.c:113:20: error: 'COM1' undeclared (first use in this function); did you mean 'COMP1'?
 113 | if (BSP_COM_Init(COM1, &BspCOMInit) != BSP_ERROR_NONE)
 | ^~~~
 | COMP1
make: *** [Core/Src/subdir.mk:37: Core/Src/main.o] Error 1
"make -j8 all" terminated with exit code 2. Build might be incomplete.



Any ideas on what could be causing this build failure?

Thank you for your help.



STM32CubeIDE: 1.19.0

STM32Cube MCU Pack for STM32WBA series: 1.7.0

X-CUBE-MEMS1: 11.3.0

Windows 10

[Andrew Neil]

All of those errors are referring to missing BSP (Board Support Package) things - so did you enable the BSP ?

[kclauah]

Thank you for the suggestion!

Yes, I can confirm that all the necessary BSP components were enabled for the expansion board.

I also ran another test: I kept I2C1 enabled but disabled the X-CUBE-MEMS1 pack. With that change, all the build errors disappeared. This seems to confirm the issue is specifically with the MEMS software pack.

[kclauah]

I have an update and a temporary workaround.

By comparing the generated code from a project with X-CUBE-MEMS1 enabled against one without, I found that the build errors are resolved by making two manual changes:



• Setting USE_BSP_COM_FEATURE to 1U.
• Adding the following missing definitions

#define BSP_B1_IT_PRIORITY 15U
#define BSP_B2_IT_PRIORITY 15U
#define BSP_B3_IT_PRIORITY 15U



The project now compiles successfully.

However, the main issue now is that these manual changes are overwritten and lost every time I modify the .ioc file and regenerate the code. Is there a way within CubeMX to make these settings permanent, or does this seem like a bug in the code generator for this software pack?

[Andrew Neil]

---

@kclauah wrote:

• Setting USE_BSP_COM_FEATURE to 1U.

---

You'd have thought that should be covered by this setting:

@STOne-32



---

@kclauah wrote:

these manual changes are overwritten and lost every time I modify the .ioc file and regenerate the code.

---

You should be able to find a place within a USER CODE section to prevent that ?

(Of course, this doesn't alter the fact that you shouldn't need to do it at all)

[kclauah]

---

You'd have thought that should be covered by this setting:

---

Thank you for your response. And I also had the same expectation that the code generator would define everything automatically.

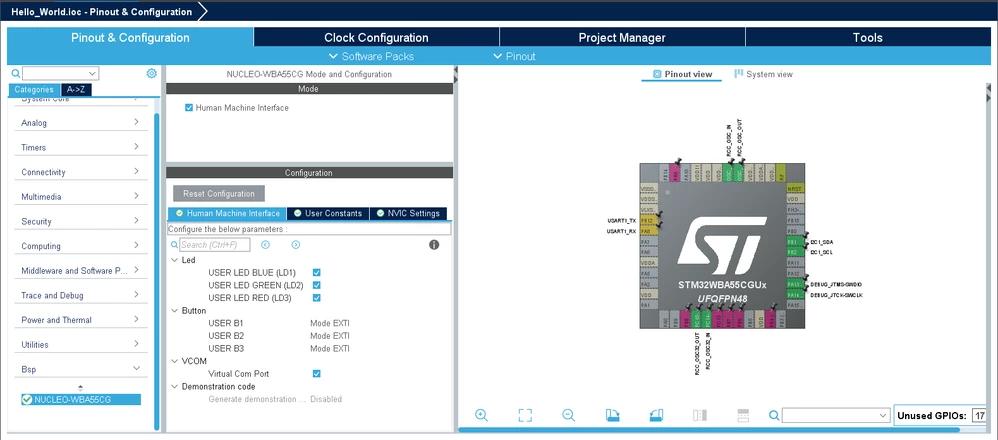

As my screenshot shows in above reply, the problem starts the moment I enable the X-CUBE-MEMS1 pack. The BSP IT priority definitions are removed and USE_BSP_COM_FEATURE changed to 0U.



You should be able to find a place within a USER CODE section to prevent that ?

(Of course, this doesn't alter the fact that you shouldn't need to do it at all)

---

I have tried placed those definition code in USER CODE Header block in stm32wbaxx_nucleo_conf.h. The code disappeared once I run "Device Configuration Tool Code Generation".
