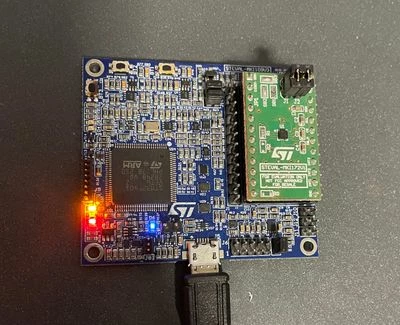

Doesn't work MKI109V3 + MKI172V1, WHO_AM_I issue

  • April 21, 2024
  • 1 reply
  • 910 views

Hello ST Community!
Please help with resolving issue with WHO_AM_I register!

Firmware that I'm using on MKI109V3 board is V3.65.5.





This topic has been closed for replies.
Best answer by Kaa

Hello @Federica Bossi,

I've Unico 9.17.0.0, firmware version is V3.65.5.

Looks like ST shipped me MKI172V1 with burned out LSM303AGR IC.
I've resoldered it from my board. Now it works!

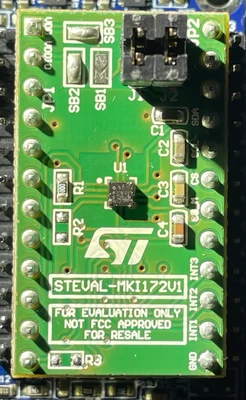

Original:

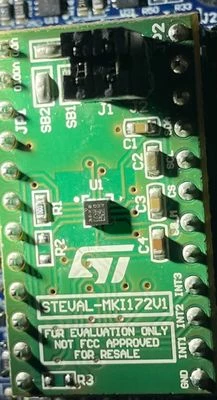

Resoldered:




1 reply

Federica Bossi
Federica Bossi
Technical Moderator
April 24, 2024

Hi @Kaa ,

Welcome to ST Community!

I tried the same test and I don't have any error.

Which firmware are you using? Unico GUI?

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
K
KaaAuthorBest answer
Associate
April 24, 2024

Hello @Federica Bossi,

I've Unico 9.17.0.0, firmware version is V3.65.5.

Looks like ST shipped me MKI172V1 with burned out LSM303AGR IC.
I've resoldered it from my board. Now it works!

Original:


Resoldered:
