H3LIS200DL -how to Disable the pin7(SDO/SA0) internal pull up

  • January 15, 2024
  • 1 reply
  • 739 views

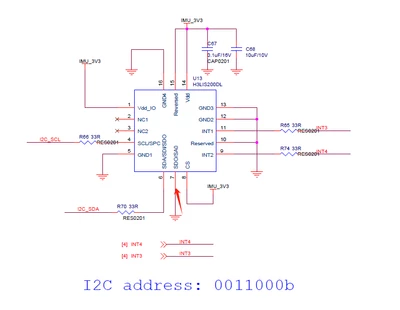

As shematic below the pin7 is connected to GND so there will be a 60uA leakage .so how to disable the internal pull up by config the register.










This topic has been closed for replies.
Best answer by Federica Bossi

Hi @EthanYao ,

Unfortunately is not possible to disable the internal pull up on the pin 7.

1 reply

Federica Bossi
Federica BossiBest answer
Technical Moderator
January 18, 2024

Hi @EthanYao ,

Unfortunately is not possible to disable the internal pull up on the pin 7.

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
