I want to know THD(Total Harmonic Distortion) paramater of IMP23ABSU Ultrasonic MEMS Microphone or MP23ABS1 ; I didn't find this parameter in the data-sheet.

[fgao.1]

..

[Federica Bossi]

Hi @fc gao​ ,

Welcome to ST Community!

On DS you do not find the THD but you can find the AOP, which, by definition, is the sound pressure level at which the microphone begins to distort 10%.

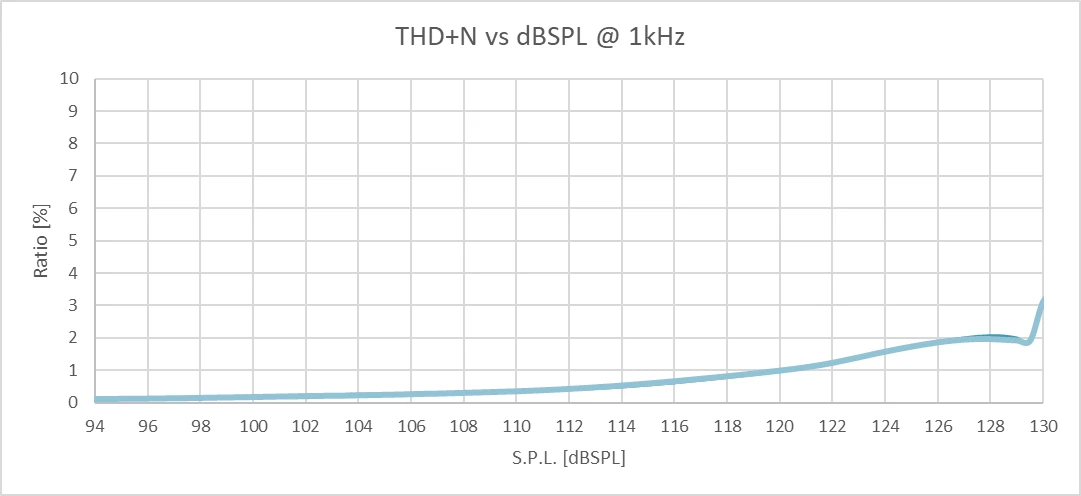

I attach you a graph showing the typical THD trend of MP23ABS1 at 1kHz.

If my reply answered your question, please click on Select as Best at the bottom of this post. This will help other users with the same issue to find the answer faster :)

[fgao.1]

Thanks for your answer!

Can I think that the THD of IMP23ABSU is also shown in your graph? :smiling_face_with_smiling_eyes:

[Federica Bossi]

yes, at 1kHz they have the same behavior :)
