IMU layout for flex PCB

  • August 5, 2025
  • 1 reply
  • 585 views

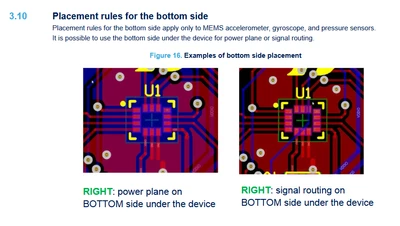

I am reading through TN0018 and saw that it is possible to have signal and plane on the bottom layer. Does this apply to flex PCB with 50-150um thickness?




Best answer by Federica Bossi

Hi @qkieu ,

No problem on bottom if device is soldered on top layer. No signal or plane in same layer where the device is soldered. This to guarantee planarity and avoids vibration.

1 reply

Federica Bossi
Federica BossiBest answer
Technical Moderator
August 7, 2025

Hi @qkieu ,

No problem on bottom if device is soldered on top layer. No signal or plane in same layer where the device is soldered. This to guarantee planarity and avoids vibration.

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
