lis2dux12 embedded advanced features page 2

[kennylelk]

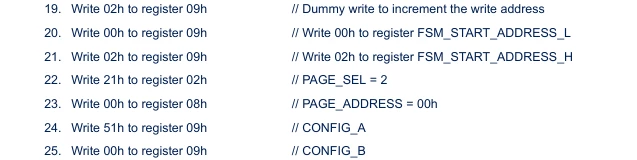

Hi, I'm trying to decipher the inner workings of the fsm configuration on this sensor. While the an5904 application note features an example of configuration on page 42, things take a turn after the 21st step. The following step selects page 2, and I can't find a description of the page contents anywhere. The only available description of the embedded advanced features pages is for page 0 in the data sheet.



[Federica Bossi]

Hi @kennylelk ,

The registers on page 2 are configurable by the user to enter the FSM programs the user desires. We do not provide a list because the FSM programs are not predetermined; the user can choose the ones he wants.
