Converting project code files into flowcharts

  • September 30, 2025
  • 1 reply
  • 226 views

Hello, is it possible to convert all the codes and libraries of the project into a flowchart that is also editable? Thank you.

Best answer by Andrew Neil

There are probably tools that will take C source code and produce flowcharts - this won't be specific to STM32.

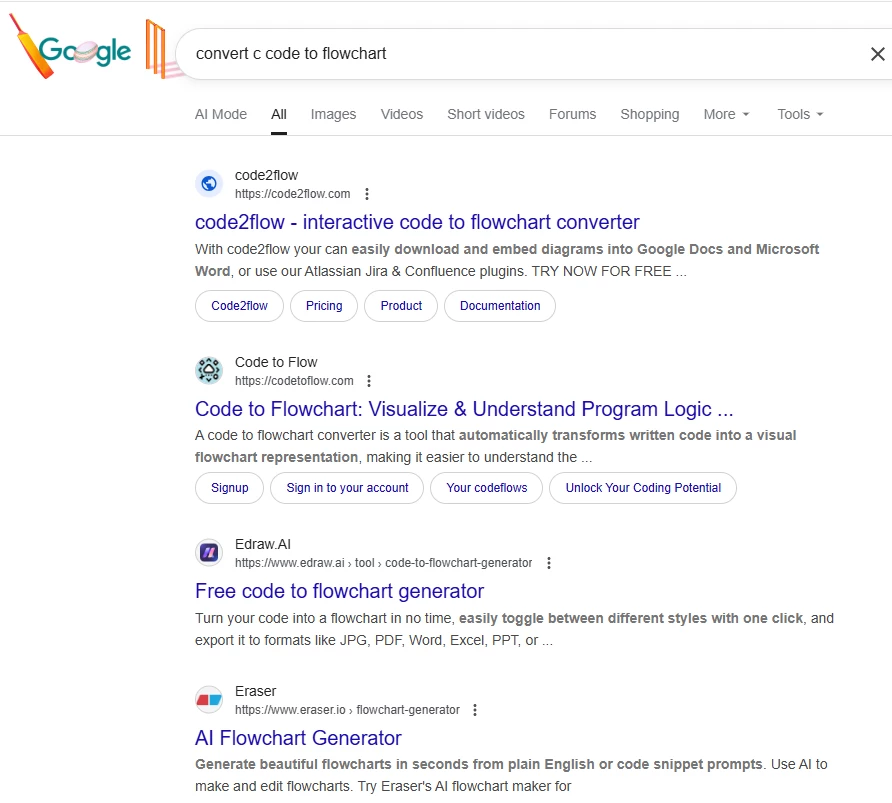

For example:


(other internet search engines are available)



I doubt that converting HAL code to flowcharts will be very useful.

1 reply

Andrew Neil
Andrew NeilBest answer
Super User
September 30, 2025

There are probably tools that will take C source code and produce flowcharts - this won't be specific to STM32.

For example:


(other internet search engines are available)



I doubt that converting HAL code to flowcharts will be very useful.
