HI, we have 74V1T07STR, with marking "TL", but datasheet not labeled. How can I make sure that the IC - 74V1T07STR ?

Forum|Forum|4 years ago
April 26, 2022
2 replies
1598 views

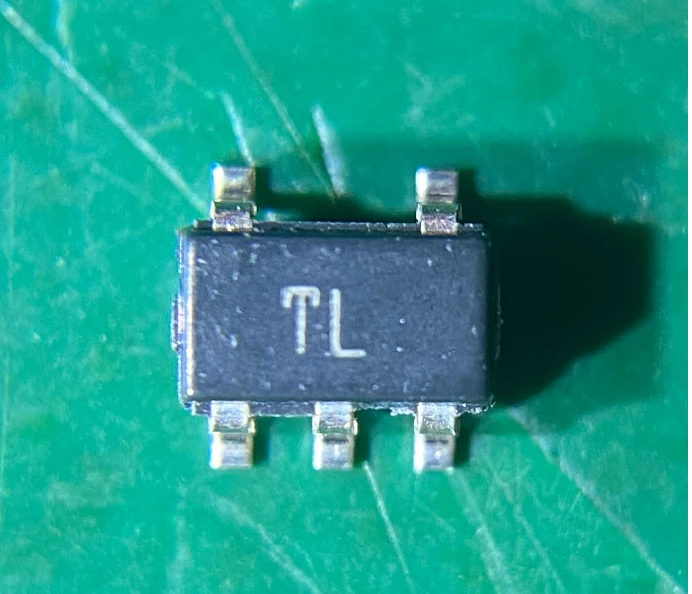

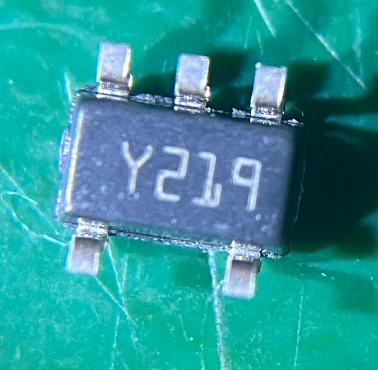

I have a photo with a label

Discontinued products

This topic has been closed for replies.

Best answer by Peter BENSCH

The component has been discontinued for many years, unfortunately there is no documentation left.

I'm afraid the only chance to find out is an electrical test circuit of the logic function. The 74V1T07 was a simple logic buffer with:

pin2 = input
pin4 = output
pin3 = GND and
pin5 = VCC (4.5...5.5V, max ICC=1µA)

If you apply TTL signals, you get the same signals from the output.

Does it answer your question?

Good luck and regards

/Peter

Associate II

...

Peter BENSCHBest answer

Technical Moderator

The component has been discontinued for many years, unfortunately there is no documentation left.

I'm afraid the only chance to find out is an electrical test circuit of the logic function. The 74V1T07 was a simple logic buffer with:

pin2 = input
pin4 = output
pin3 = GND and
pin5 = VCC (4.5...5.5V, max ICC=1µA)

If you apply TTL signals, you get the same signals from the output.

Does it answer your question?

Good luck and regards

/Peter

Associate II

Thank you, Peter Bensch!

I will do that, thanks for the tip

Have a nice day
