No target found in blackpill

[bpo1287]

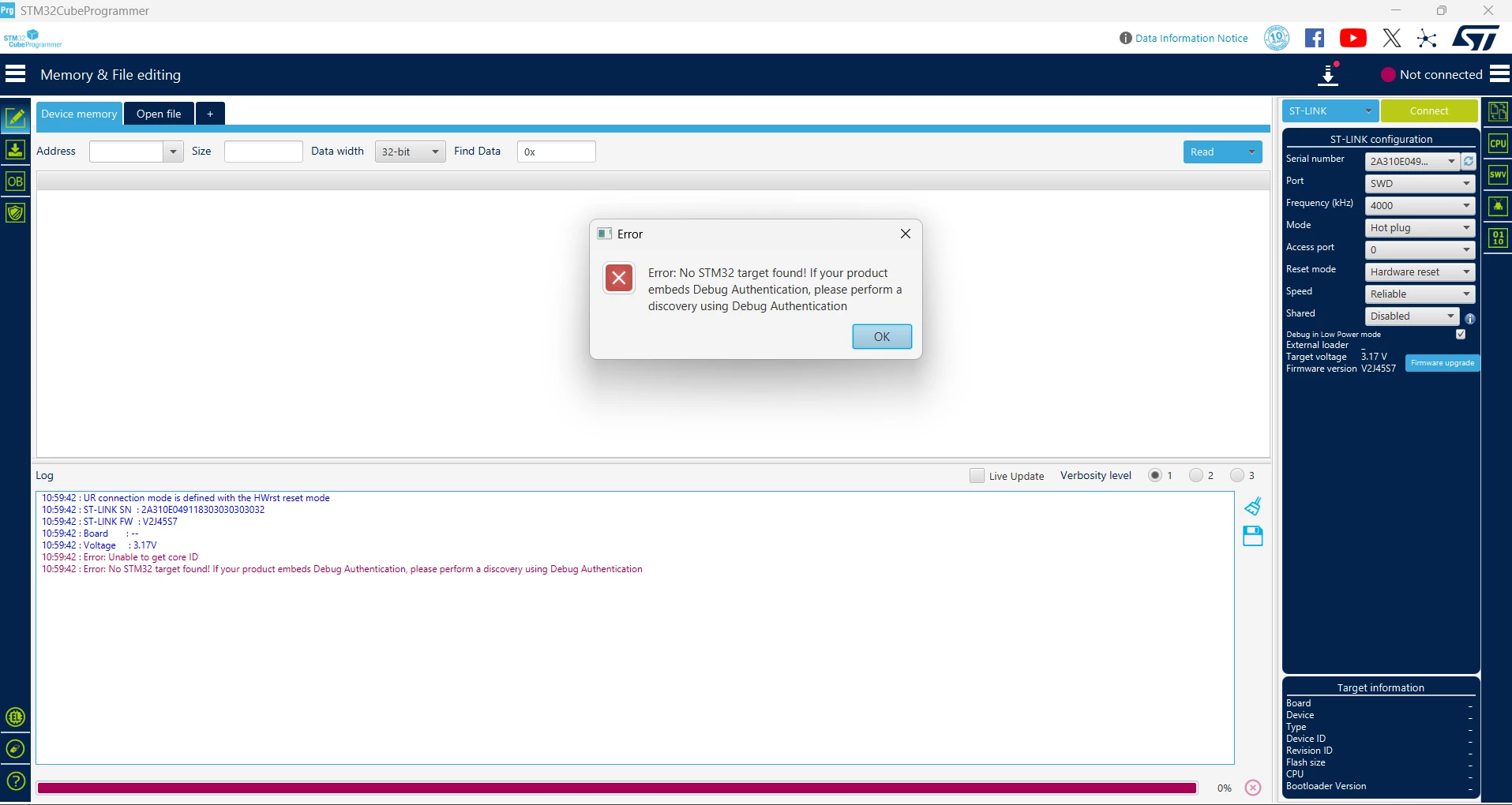

Hi. I am university student and This is my first time using the blackpill for my project . I am having trouble in uploading my code to my blackpill using the stlink. I have make sure that i connected to the correct pin from the stlink to blackpill. However when i pressed uploading in keil it kept saying no stm32 target found. I try to boot to connect to programmer but it kept the same error. I have read others similar problem and tried their solution but it still wouldnt work. Please help me.

[AScha.3]

Hi,

set reset -> software reset , then try again.

[AScha.3]

no answer...

btw

"black pill"

1. you are sure, the board/cpu is ok/new ?

2. you are sure, the cpu is genuine STM - or other like GD, CKS ?

[Andrew Neil]

Welcome to the forum.

As @AScha.3 said, the Black Pill is not an ST-Product, and might not contain a genuine STM32.

You've tagged this as STM32F1 - those are particularly prone to being fake/clone.

See this from only last week.



Also, what ST-Link are you using?

See: How to recognize a genuine ST-LINK/V2 versus a cloned one; in particular, this comment.
