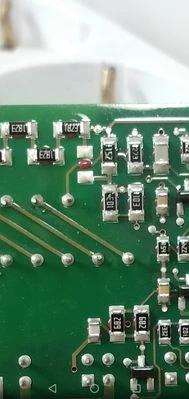

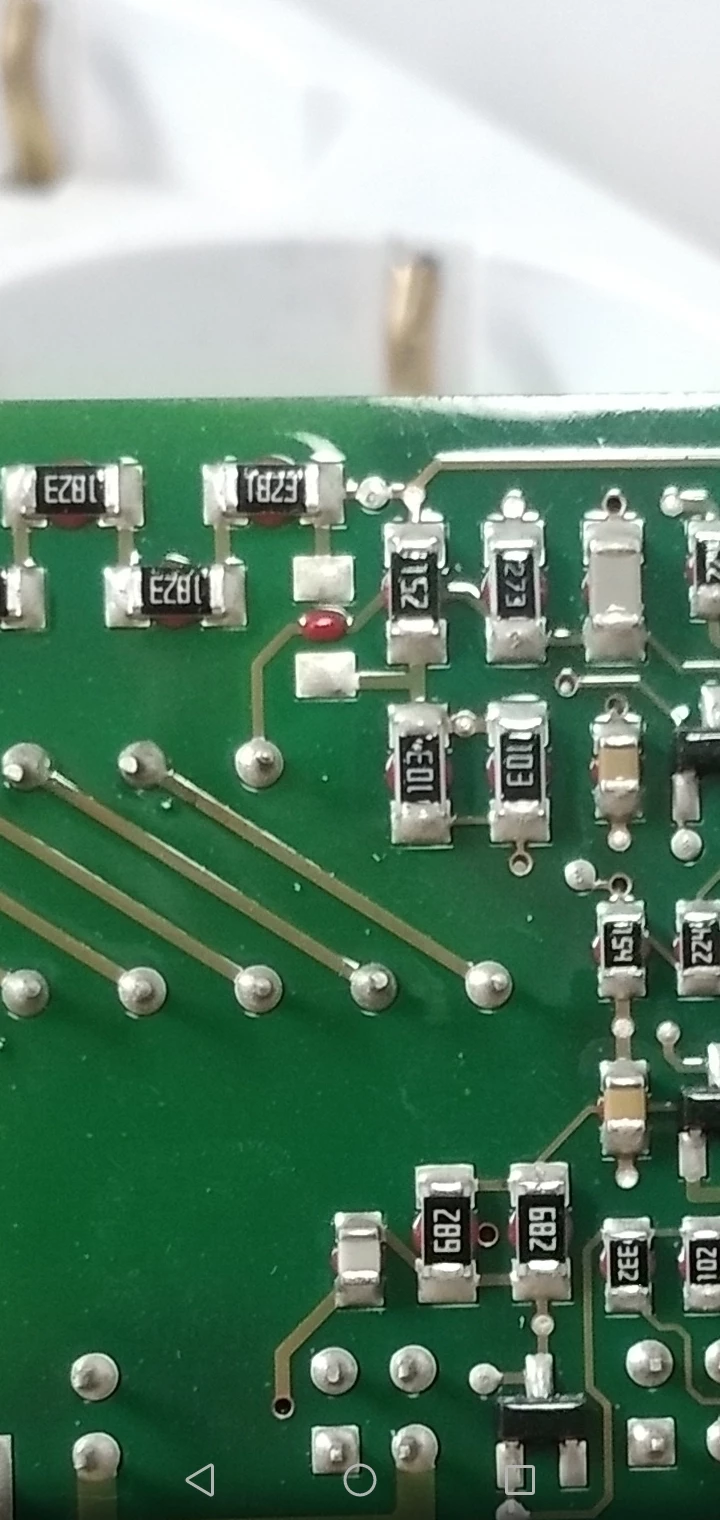

Does someones know what is the red devices in the board attached?

1 reply

TDK
TDK
Super User
March 5, 2024

Those are spots of glue to keep the resistors from moving around when they are placing them. They serve no electrical purpose.

"If you feel a post has answered your question, please click ""Accept as Solution""."
    Andrew Neil
    Andrew Neil
    Super User
    March 5, 2024
    @TDK wrote:

    Those are spots of glue to keep the resistors from moving around .

    doesn't seem to have worked in this case!




    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    TDK
    TDK
    Super User
    March 5, 2024

    > doesn't seem to have worked in this case!

    Likely the part was intentionally not loaded and the glue stencil wasn't modified. Also note solder paste on those pads--same reason.
