Specs Sheet for older ceramic IC

  • March 22, 2025
  • 1 reply
  • 567 views

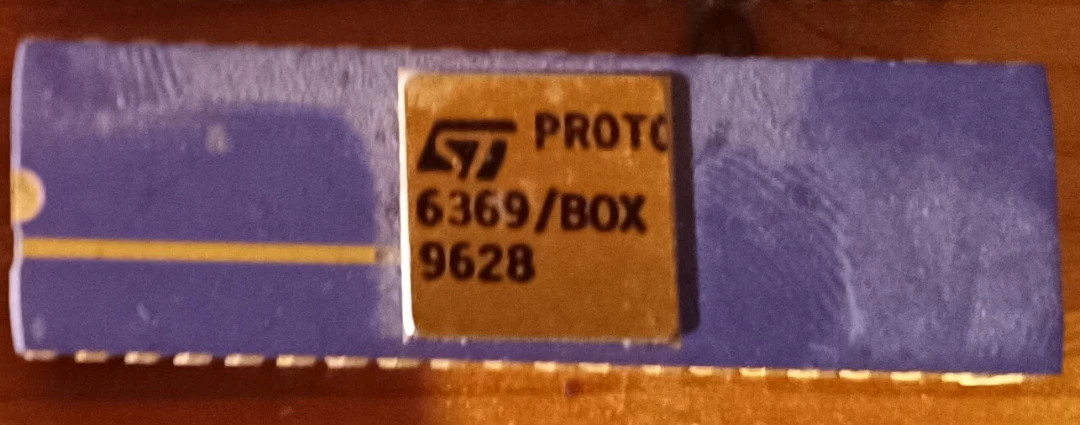

hello, i would require a specs sheet for the following IC. i cannot find any information online. if its not visable from the picture it has a DIP20 package. Thank you

Best answer by Tesla DeLorean

It's clearly a 40-pin DIP part, this dropped out of the internet with little shaking..

https://www.alldatasheet.com/datasheet-pdf/pdf/23764/STMICROELECTRONICS/ST6369.html




1 reply

Tesla DeLorean
Tesla DeLoreanBest answer
Guru
March 22, 2025

It's clearly a 40-pin DIP part, this dropped out of the internet with little shaking..

https://www.alldatasheet.com/datasheet-pdf/pdf/23764/STMICROELECTRONICS/ST6369.html




Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    S
    Shadow777Author
    Associate
    March 22, 2025

    my bad on the Dip20 part, i forgot how to count. i searched all possible combinations and couldnt get that PDF. Thank you.
