Question

Transistor

  • March 7, 2024
  • 2 replies
  • 797 views

what is the maximum operating frequency of BDX33 and BDX34 ??

2 replies

Andrew Neil
Andrew Neil
Super User
March 7, 2024

What do their datasheets say?

(it will also depend on your circuit, and what you consider to be the limiting factor(s) on performance)

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
AScha.3
AScha.3
Super User
March 7, 2024

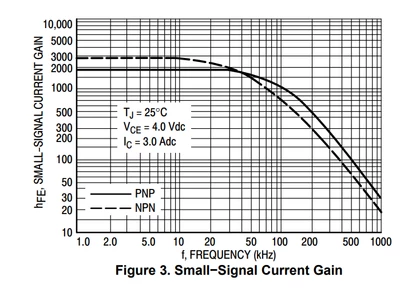

These (old) darlingtons are more for small audio amps, see :




From ds i would recommend to use it at max. 30kHz (sine) , over 30kHz gain falling.
