[3D Request] Missing information: X-NUCLEO-IHM04A1

[LOUIESNAPEDA]

Dear STMicroelectronics Team,

Good day. This is Louie from SnapMagic Search. We create PCB footprints, schematic symbols, and 3D models for electronic components.

One of our customers is looking to integrate X-NUCLEO-IHM04A1  into their design and has requested a 3D CAD model.

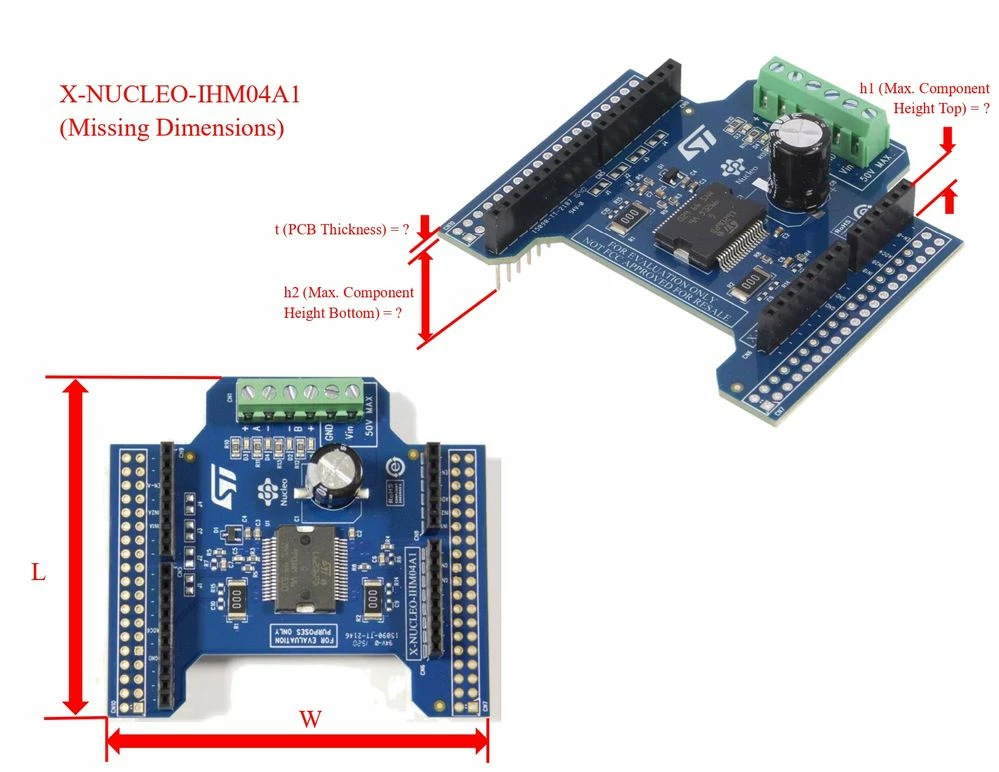

But, we are missing key dimensions to create the model. Could you assist us by providing the necessary data? Please see the following image for reference:

We require additional dimensions to recreate them, and any references such as BOM, schematics, mechanical drawings, and/or Eagle board files would be greatly appreciated.

A precise 2D/3D model helps engineers integrate your component, boosting future sales.

We’d appreciate any help you can provide and look forward to your response.

Best regards,



Louie Marc Duterte Mechanical Engineer

SnapMagic

San Francisco, CA 94107

1-844-625-8890

[Peter BENSCH]

Welcome @LOUIESNAPEDA, to the community!

A 3D model would be a prerequisite for using the tools in an end product, but this is a violation of the Terms of Use, section RESTRICTIONS AND WARNINGS:

The Evaluation Board offers limited features and is conceived to be used only to evaluate and test ST products in a research and development setting.
[...]
You shall not use, in whole or in part, the Evaluation Board in a production system.
[...]

The missing dimensions can easily be taken from the tab CAD Resources (GERBER, BOM), which can be found on every product website. This data can then be used to create a 3D model for use in a test setup, for example.

Regards
/Peter
