Cant Identify TVS SMD DIODE "G3 019"

  • January 30, 2024
  • 1 reply
  • 2936 views

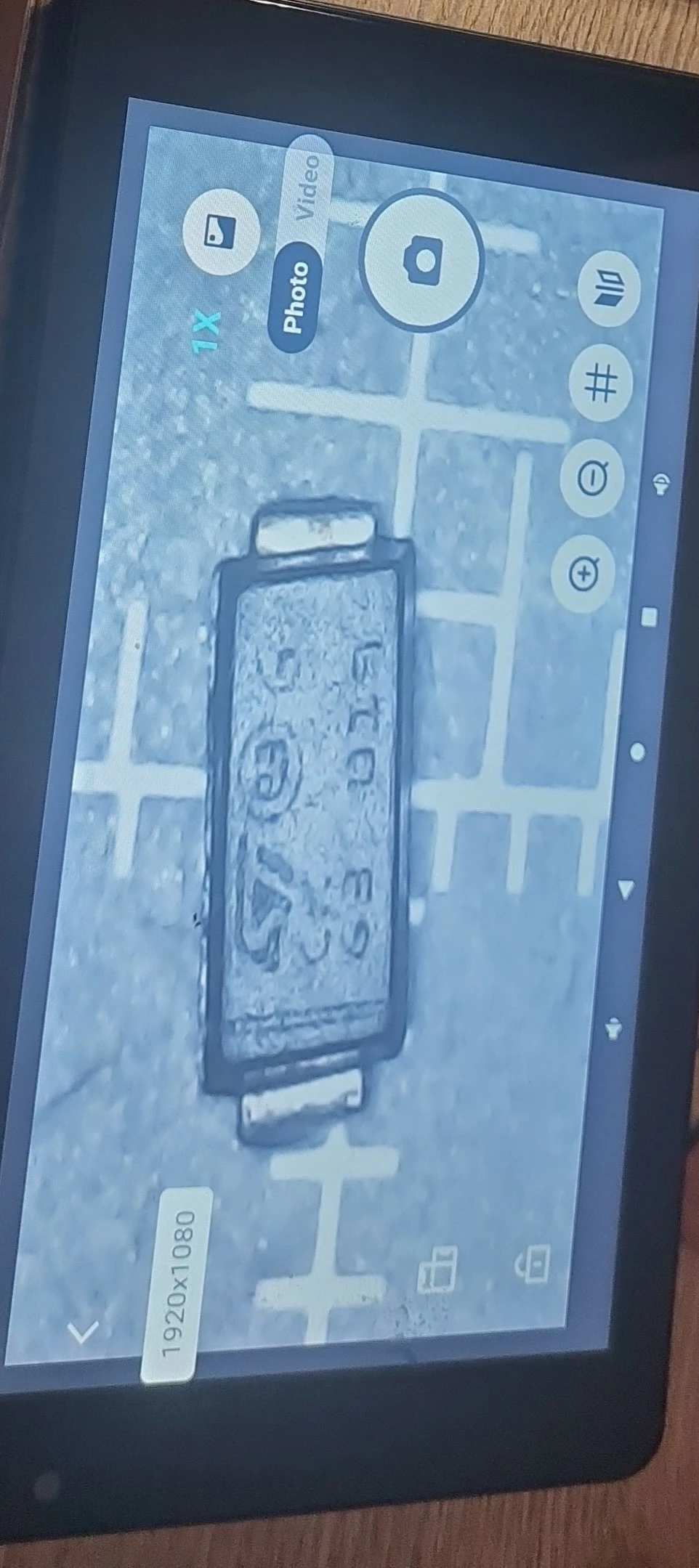

Hi I cant figure out which is the correct Diode. It was mounted in a Charging (12/24V DC input) device for ADALIT Firefighter Light .



Thanks for your Help

This topic has been closed for replies.
Best answer by Tesla DeLorean

It's a TWO LETTER MARKING CODE

https://github.com/cturvey/RandomNinjaChef/blob/main/stdiode.txt#L15  SMAJ30A CK

It's not terribly clear in your image, so an educated guess. You might be able to get a clearer image, angle, or another board with the same part. Get better imagery, or attach the original, not screen shot of another image on a phone..

See also "DIODES INC" brand

https://www.littelfuse.com/media?resourcetype=datasheets&itemid=09a6ae9a-73cb-4ac4-acac-e6dab92ab953&filename=littelfuse-tvs-diode-smbj-datasheet

1 reply

Tesla DeLorean
Tesla DeLorean
Guru
January 30, 2024

CK ?

SMBJ30(C)A

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
A
Agentobi83Author
Associate
January 30, 2024

what does CK mean?



Tesla DeLorean
Tesla DeLoreanBest answer
Guru
January 30, 2024

It's a TWO LETTER MARKING CODE

https://github.com/cturvey/RandomNinjaChef/blob/main/stdiode.txt#L15  SMAJ30A CK

It's not terribly clear in your image, so an educated guess. You might be able to get a clearer image, angle, or another board with the same part. Get better imagery, or attach the original, not screen shot of another image on a phone..

See also "DIODES INC" brand

https://www.littelfuse.com/media?resourcetype=datasheets&itemid=09a6ae9a-73cb-4ac4-acac-e6dab92ab953&filename=littelfuse-tvs-diode-smbj-datasheet
