Connect eval-l9963e-mcu to Arduino UNO

[alfonso_mauro]

Hi; i was trying to connect my eval-l9963e-mcu to an arduino uno, to comunicate by SPI. How can i do this?



[Andrew Neil]

As its name suggests, the EVAL-L9963E-MCU already has an on-board MCU - so what is the purpose of connecting to an Arduino?

Do you want the Arduino SPI to:

• talk directly to the L9963E battery management chip ?
• talk to the Onboard SPC574S64E3 microcontroller ?
• something else ?

[alfonso_mauro]

my final intention is to take the datas from the bms and comunicate in can bus. so i was thinking to comunicate with an arduino in SPI, and at the end communicate by can bus



[alfonso_mauro]

Duplicate - merged.

Please don't start multiple threads on the same question.

---

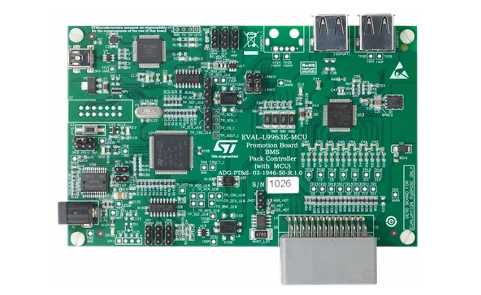

Hi, I want to comunicate with an arduino with my eval-l9963e-mcu by spi communication. How can i do it?

and where are the MISO,MOSI,CS... on the board

[Andrew Neil]

As always, the schematics are on the 'CAD Resources' tab of the Product Page:

https://www.st.com/en/evaluation-tools/eval-l9963e-mcu.html#cad-resources

Also check-out the Documentation:

https://www.st.com/en/evaluation-tools/eval-l9963e-mcu.html#documentation

[alfonso_mauro]

Duplicate - merged.

Again, please don't start multiple threads on the same question.

---

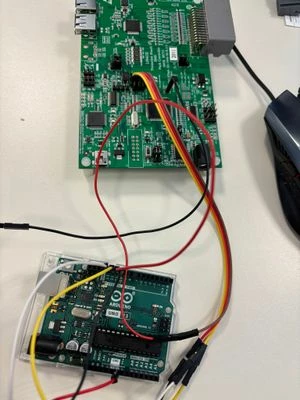

Hi everybody, I am working with the eval-l9963e-mcu. And my intent is to connect the evaluation board with an arduino uno to see the cell voltage in the serial monitor. I tried to connect the MISO,MOSI,CS, CLOCK, GND to the pin of arduino, but when i connect the cells nothing happens on the display.

thk you everybody for the attentions.
