Could help me identify this HDD (Hard Drive PCB) TVS diode part? SUG SUA

[Ayoob]

Hi ,

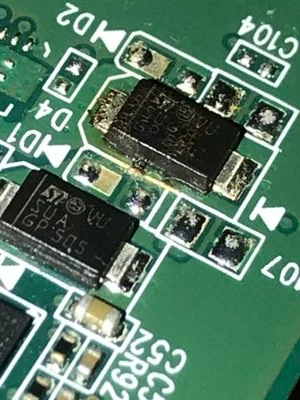

Could help me to identify the model of this TVs diode

it’s from WD external 4TB HDD

Thanks in advance.

[Tesla DeLorean]

"the marking is SUA, which corresponds to the SMA6F5.0A-TR, which can be found today with 6AI marking."

https://community.st.com/t5/other-hardware/hi-could-you-please-help-me-identify-this-diode/td-p/197883

[Ayoob]

Thanks for reply ,

What about the first TVs Diode which stands with SUG marking ?

[Tesla DeLorean]

"SUG stands for the SMA6F13A-TR"

https://community.st.com/t5/power-management/unable-to-find-diode-or-cross-ref/td-p/683783

[BarryWhit]

@Lina_DABASINSKAITE , here's another example of missing labels. The forum sees a slow but steady stream of such chip identification help requests, but there's no forum label for it. In lieu of a dedicated subforum, a dedicated label would be nice.

[Peter BENSCH]

@BarryWhit There is a label: Power Managment > Discretes

Well, maybe not the ideal combination, but should mostly work - doesn’t it?

Regards
/Peter

[Tesla DeLorean]

As it is it shows up in my feed, I'm Ok with it, and the more times we answer the better the chance of a direct Google Hit for the self-service customers



These particular diodes being a pain due to lack of marking documentation, and the markings changing from current issue parts.



ST STMICRO DIODE SUA SUG MARK MARKING

HARD DRIVE DIODES

600W TVS

OLD: SUA SMA6F5.0A NEW: 6AI
OLD: SUG SMA6F13A NEW: 6AY
