DTS on the STWLC38

  • November 9, 2023
  • 1 reply
  • 791 views

What is DTS used for?

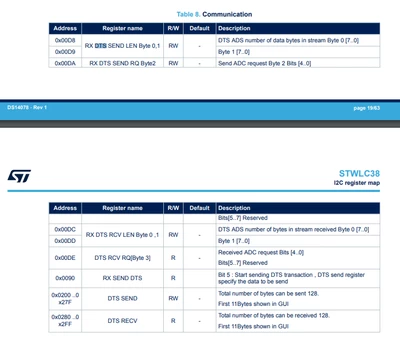

And can I configure the following set of registers on through I2C to send and receive data in-between 2 STWLC38s through the main coil ?

Does this Qi IC have a detailed user maual?




    This topic has been closed for replies.
    Best answer by willzhou

    DTS is the feature of Qi standard what allows
    the communication between receiver and transmitter. The STWLC38 is RX only for Mass Market.

    If you want TX to transfer DTS, please use STWBC2, ref to https://www.st.com/en/power-management/stwbc2-hp.html



    Also there is example code here

    https://github.com/STwirelesscharger/Python_FT260_ST_WLC/blob/main/a5_wlc38_send_recv_dts_packet.py





    1 reply

    W
    willzhouBest answer
    Technical Moderator
    January 8, 2024

    DTS is the feature of Qi standard what allows
    the communication between receiver and transmitter. The STWLC38 is RX only for Mass Market.

    If you want TX to transfer DTS, please use STWBC2, ref to https://www.st.com/en/power-management/stwbc2-hp.html



    Also there is example code here

    https://github.com/STwirelesscharger/Python_FT260_ST_WLC/blob/main/a5_wlc38_send_recv_dts_packet.py





    In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
