Error Flashing firmware to STWLC98

[simonh]

Hello,

I have developed my own evaluation Board for the STWLC98 Chip. When connecting the power suplly, the DC-Mode, which is on the IC when it is delivered, works in a correct way. But when I want to program the IC with the following firmware from the ST Website:

STEVAL-WLC98RX_config_2C00.memh
STEVAL-WLC98RX_nvmpatch_1454.memh

I get the following errors, when the programming status bar reaches 100%:



Config Id Mismatch! file/chip: 0x2C00/0x1000

Wrong config id 0x1000 and patch id 0x0000 for RX



Where can I find the right Firmware or do you have any solutions for me?

Thank You
Simon

[willzhou]

Hi Simon

Seems your evaluation Board have some i2c issues,

do you change anything from EVK sch board?

Does chip I2C pins well welding?

Also you can use this tool "wlc_ft260_Recovery.7z" to erase chips.

Wireless Charging solution Wiki - STMicroelectronics Community

If you can show GUI log to us, it will be better.



[simonh]

Hi Will

The schematic is the same.

The I2C Chip seems to be welded well.

The wlc_ft260_Recovery tools works fine.

But there is still the same problem when loading the firmware to the board

I have sent you the txt log file via private message.

[willzhou]

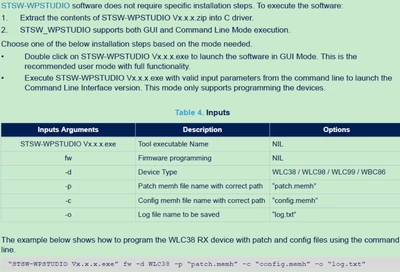

thank you for the logs, can you follow UM3164 STSW-WPSTUDIO user guide.pdf and test again.
