help me to indentify diode EBQ z205

[sevco]

Could anyone help me to identify  attached smd  diode?

[Peter BENSCH]

Welcome @sevco, to the community!

The marking EBQ stands for the SMAJ130CA-TR.

Hope that helps?

Regards
/Peter

[sevco]

Thank you Peter, did you check the attached photo?



Regards Sascha

[Peter BENSCH]

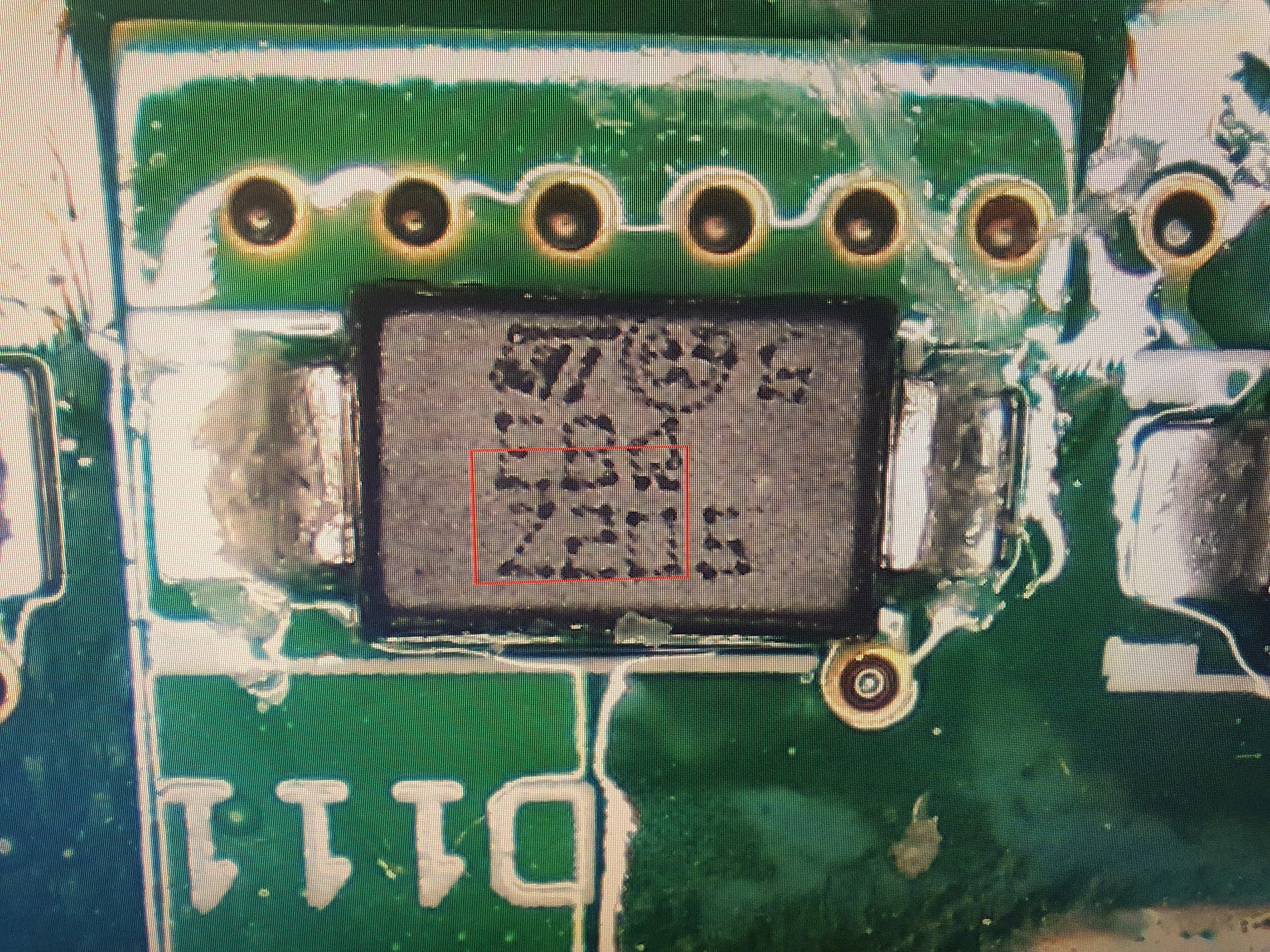

Yes, your attached photo shows an SMA package with three lines:

• ST e3 G
• EBQ
• Z205

The 1st line contains the logo plus some eco markings, the 2nd line the relevant marking and the 3rd line the date code.
