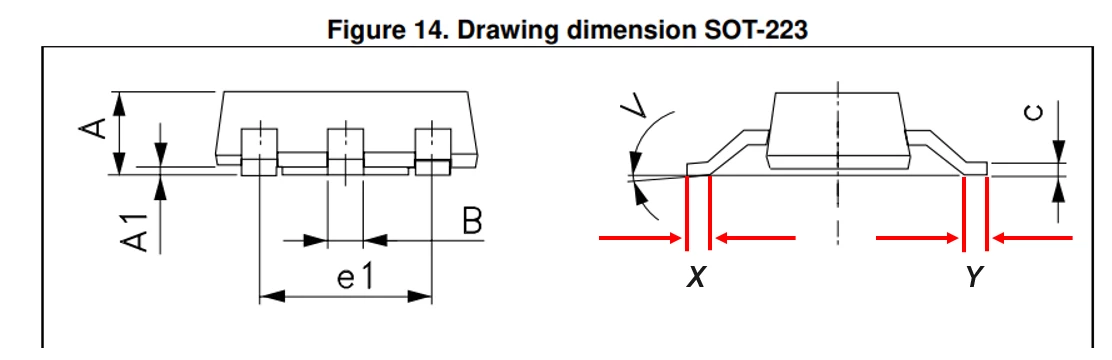

Hi, Could you give some information regarding this component, Part No : LD1117S50TR Can you give information regarding pin dimension marked with X (refer image) Thank you

[aadza.1]

..

[Peter BENSCH]

Welcome, @aadza.1​, to the community!

We would like to apologize that this information was not taken over from the standard JEDEC TO-261: the value X and Y in your drawing is called L by JEDEC and the value min 0.75mm is given, typical and max values do not exist for this value.

Does it answer your question?

Regards

/Peter
