Hi, I want to know the exposed pad connection of LP825 IC. Is it connected to GND?

[sk.71]

..

[Peter BENSCH]

Welcome, @sk.7​, to the community!

Please upload a photo of the device where you can clearly see the marking.

Regards

/Peter

[sk.71]

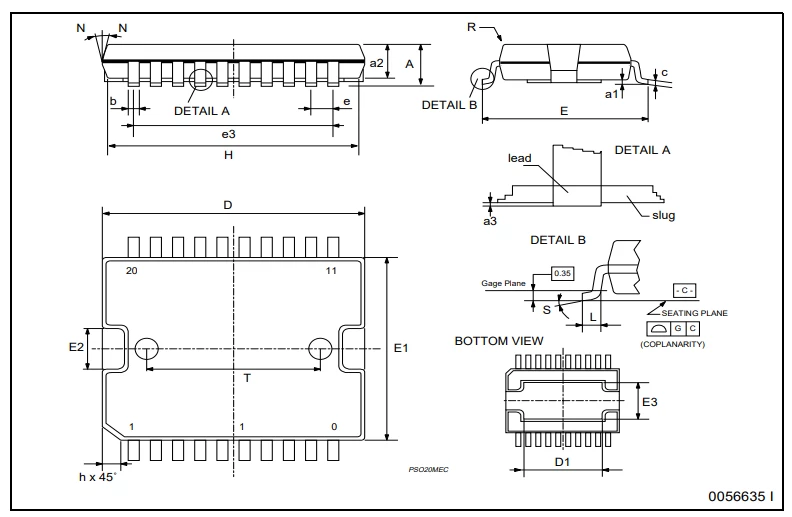

No information is given in the datasheet about the Epad connection.

[Peter BENSCH]

Well, if you have the device (part) in front of you, it would be very helpful if you took a legible photo of it.

If you only have the data sheet, then please upload either the URL to the data sheet or at least a complete page.

Regards

/Peter

[sk.71]

Octal low-side driver for resistive and inductive loads with serial/parallel input control, output protection and diagnostic

[Peter BENSCH]

Ah, you're talking about the L9825. I have no information about its exposed pad, but it should indeed be connected to GND. This should be confirmed by a measurement between pin 1, 10, 11 or 20 to the exposed pad, which should give ~0ohm in each case.

If the problem is solved, please mark this thread as answered by selecting Select as best, as also explained here. This will help other users find that answer faster.

Good luck!

/Peter
