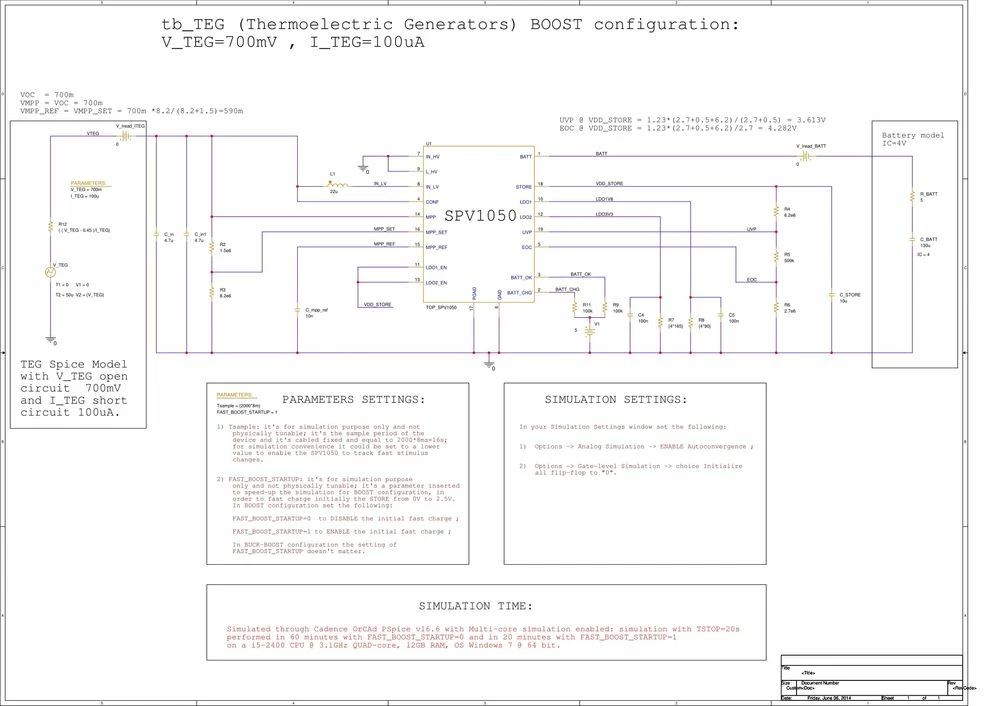

I would like to ask about the schematic in the picture below. I am trying to do the fabrication and assembly process by using the components on the schematic. but when I tried to test it, it was found that the result was not the same as the simulatio

[Moonji]

[Tesla DeLorean]

SPV1050

https://community.st.com/s/question/0D53W00001UyXtBSAV/i-would-like-to-use-this-ic-spv1050-may-i-know-what-simulation-software-can-i-use-to-simulate-this-circuit

https://community.st.com/s/question/0D53W00001gWv88SAC/voltage-droop-after-tsample-of-spv1050-voltage-input

[Moonji]

sorry I'm not really understand the link that you attach

[Marco FICHERA]

Hi @Moonji​ ,

The above link refers to a request of a Community member on the simulation of SPV1050, where we provided some related material.

Consider also the possibility to use a STEVAL-ISV019V1 board, as a reference for your design.

I hope it helps.

Regards

Marco
