Inquiring about L9369 Gate Drvier's Pinmap

Hello. i'm using L9369 and i have a question about it.

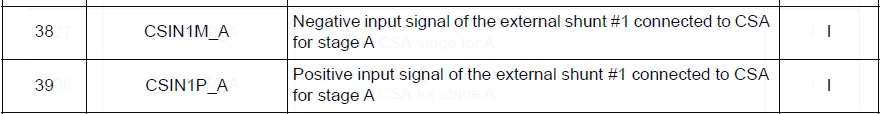

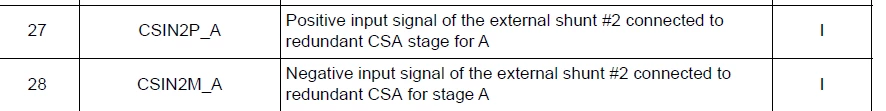

According to the datasheet i have, L9369 has 4 channel CSA(what is the full name of CSA?) and below picture is the example of pin definition.

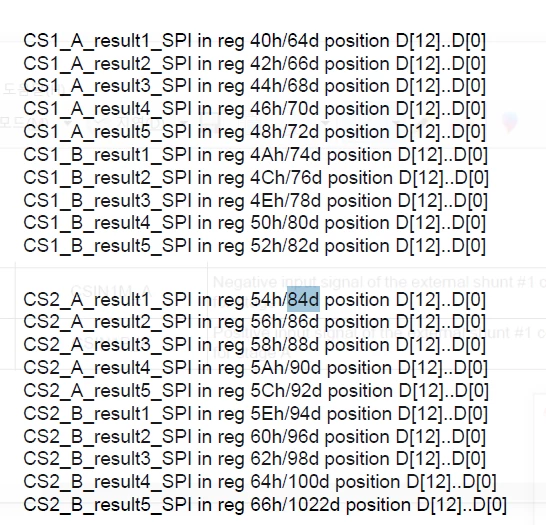

and there are registers that have Current sensing function via shunt resistor's voltage.

here is my question.

how can i mapping CSIN1P... <-> CS1_A_result1.... pins?

i think the name is so different. so i can't connect them.

can you summarize it?

please help me. thank you.
