IPower management IC STPMIC1APQR

[annguyen96vn]

 I am using the power IC STPMIC1APGR to manage the power for my circuit board

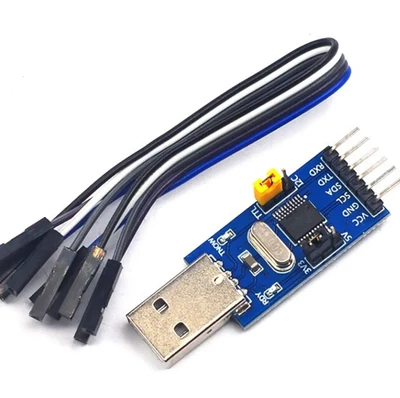

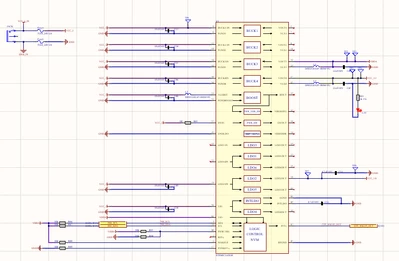

Currently I can't connect to STPMIC1 1.07 software (I use win 11 and USB to I2C converter CH341T_V3)my diagramThe software is not connected yetUSB to I2C

[annguyen96vn]

If you find an error, please notify me. please . thanks

[Vincenzo]

Hello,



you cannot connect the GUI software with standard USB to I2C interface, your interface is working with a simple terminal software



Regards

Vincenzo
