L4985A_PFC issue

[kanishka]

Hi

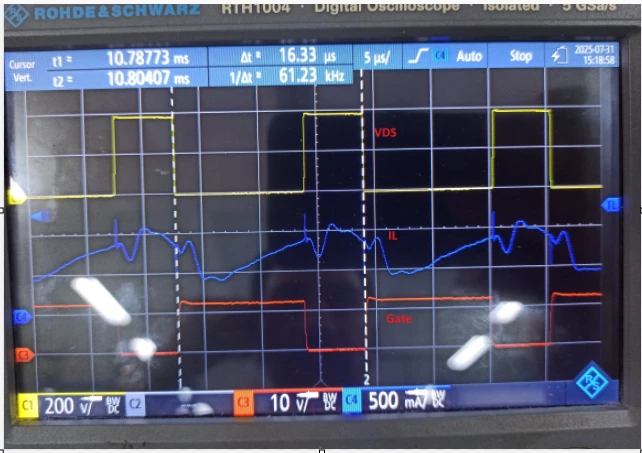

I am using L4985A for my 110W PFC design. During testing boost inductor current is getting distorted when i increase the load. And also, audible noise from the boost inductor. Here I attached the waveform. I used eDesign suite for designing and simulating the design. I am attaching my circuit herewith. Please give your suggestion to solve this issue. Below given the eDesignsuite design page.

https://eds.st.com/pfc/?msg=%7B%22data%22%3A%7B%22application%22%3A%22pfc_html%22%2C%22specs%22%3A%7B%22ic%22%3A%22l4985a%3Apfc_boost%22%2C%22input%22%3A%7B%22v%22%3A%7B%22min%22%3A90%2C%22max%22%3A253%7D%2C%22f%22%3A50%7D%2C%22output%22%3A%5B%7B%22v%22%3A380%2C%22r%22%3A2%2C%22i%22%3A0.3%7D%5D%7D%7D%2C%22action%22%3A%22new_design%22%7D

Thanks

Rakesh
