L9502: How to understand the SPI Frame Counter and SPI Interframe delay?

[Jackson_Hu]

I'm working on a project to use L9502 for PWM output diagnostic. But we can't be sure how to config the Frame Counter bit in SPI message. Is it need to update the frame counter every time, or it just need to update it in consecutive frames?

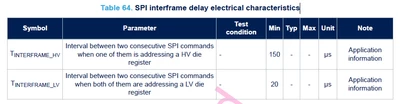

And for the consecutive frames, should we follow the SPI interframe delay electrical characteristics?

Thanks for your help!

[Peter BENSCH]

Welcome @Jackson_Hu, to the community!

The public community is not the right place to discuss confidential documents. If you have any questions about this product, please contact the person who sent you the documents containing these tables.

Regards
/Peter
