Looking for Complete reference application / schematic of STWBC86 Wireless transmitters

[crm04140]

Hi I plan on using STWBC86 for a wireless charger prototype. I was looking at the datasheet for the reference designs and found that the reference schematics has missing or has hard to read values, labels, and wires. Is there a better version of the schematics that is clear and completed?

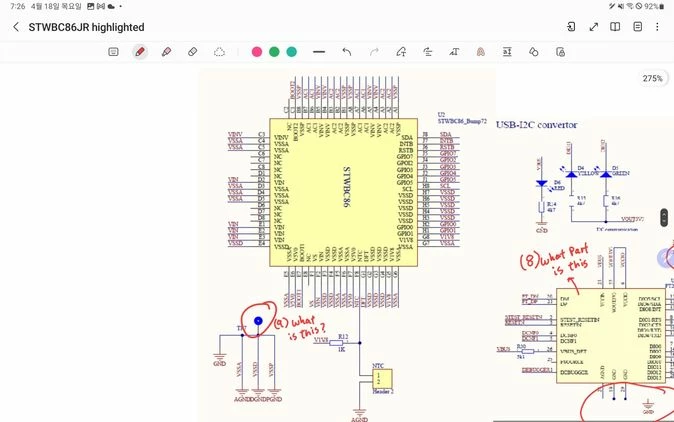

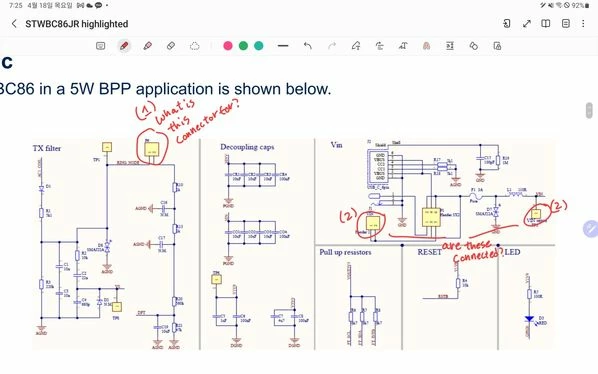

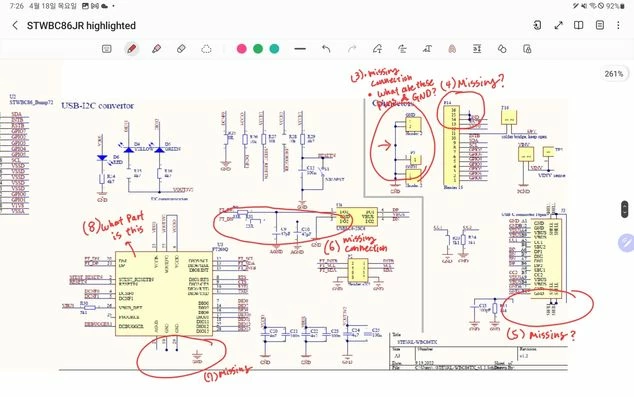

If there is not, can anyone give recommendations for the highlighted parts?

I have also attached the original Schematic as a PDF below so you can see the clean version as well.

[willzhou]

Hi
Sorry for the inconvenience
1.P6 need connect, it is for ask demode use
2.this connecter is use for test use, head2 is for connect external power,
vin_sense/tp2 is for test
3.It is GND
4.miss GND
5.this is usb shell
6.This P2 need connecter, connect FT I2C and TX I2C pins
7.this is FT gnd
8.tHIS IS ft260
9.THIS IS GND TEST points

For detail file you can find here

https://www.st.com/content/ccc/resource/technical/layouts_and_diagrams/schematic_pack/group2/2b/77/be/47/c5/5c/4c/fa/STEVAL-WBC86TX_SCHEMATIC/files/steval-wbc86tx-schematic.pdf/jcr:content/translations/en.steval-wbc86tx-schematic.pdf

https://www.st.com/resource/en/board_manufacturing_specification/steval-wbc86tx-gerber.zip

https://www.st.com/resource/en/bill_of_materials/steval-wbc86tx-bom.pdf

https://github.com/STwirelesscharger



[crm04140]

Fantastic!

[Raycura1]

All the links you previously posted no longer work. Kindly share the schematic online or email the schematic. It will be really helpful.
