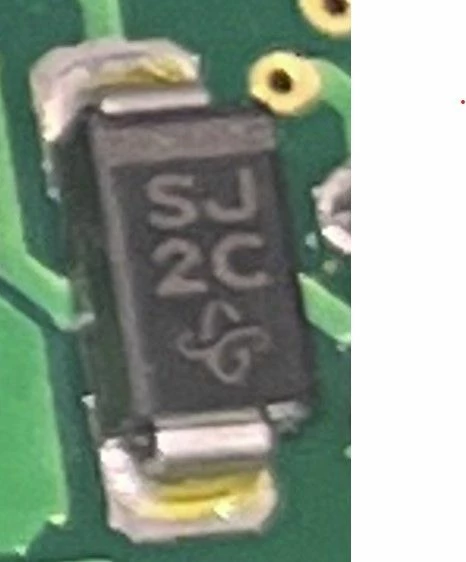

Please can you help me identify this diode

[authorleon]



It is out of a Citroen C3 SX 03 BSI relay/fuse car unit

[Tesla DeLorean]

Vishay S1J

https://www.vishay.com/docs/88711/s1.pdf

[authorleon]

Hi, not to doubt at all. This is definitely the one.



Is this the one I have to get?



https://www.digikey.co.uk/en/products/detail/vishay-general-semiconductor-diodes-division/S1J-E3-61T/1091468

I link to exactly what I need would be great.

Thank you



[Peter BENSCH]

Yes, that is exactly that device.

[authorleon]

Hi all.

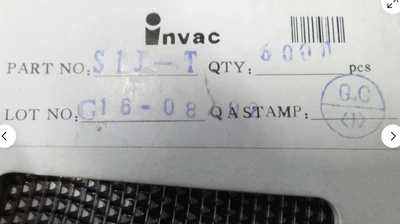

Okay, is this the one on ebay?

https://www.ebay.co.uk/itm/392866623461?itmmeta=01HRM2J82DXMKT97DTQX798G2S&hash=item5b78acefe5:g:S-sAAOSwRPJfBia7&itmprp=enc%3AAQAIAAAA4KmpiiUwICRCwu1mPB0TCYJfj2392v5Hn4zNaLaRsEhFVIEv114eOxsFtGQU0MDJaoiemjeSjTb9b6Okv14l51ZT9ES1Vdesphykfamhoc%2BNR5Km6QpIJ1YKenXacF4M%2F0%2B1RXm9SZMTkTsMN9dV3Zk9sgU00%2FRTeNDAFay6A5fV0nOgsXoZjj3uJkYBrr%2FWldQgyyDtBOMax4xZb4VhqrHWcHh2A2XC8N1wYH3Qnbl%2BVoTjr3MzclV0CfMjJO9%2BXPCQ%2Bqxk6mvvUniTlpMGp0syNFXcWH2SAKkcpQdVdrAw%7Ctkp%3ABk9SR66ByYLFYw





I am just double checking before ordering.

thanks

[Peter BENSCH]

Well, the S1J is produced by several manufacturers and is essentially technically identical. However, you have stated that it is used in a car, which explains Vishay's automotive approval (see data sheet for AEC). As far as I know, the S1J from Invac on eBay is not automotive certified. So you would be well advised to find an S1J providing such certification.

Even if this topic is not really one that should be discussed in a forum for ST devices, we would still be pleased if we could help you further.

Good luck!
