Hello. I am using L9396 for WSS

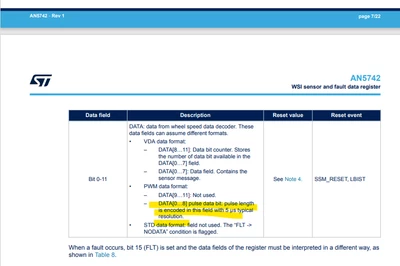

When reviewing the WSS operation with the ST_L9369 datasheet, there is no detailed explanation regarding the Pwm Data format DATA[0...8]. Could you provide information on what each bit represents?

[Tesla DeLorean]

Perhaps you should be conversing with your local rep and FAE / Support Engineer?

Looks to be a binary count, with ~5us resolution. You could perhaps try different values and confirm what it does to the signals?
