Query on Using STM6601 for EN deassertion

  • January 20, 2025
  • 0 replies
  • 419 views

Please confirm, for enable deassertion by long press, PB need to be pressed or both PB and SR needs to be pressed

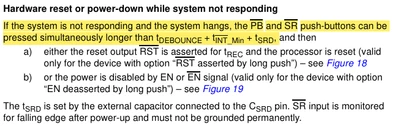

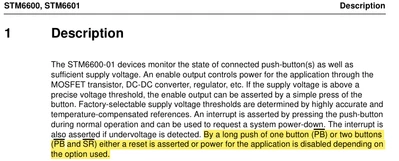

The datasheets mention two things,



Note: I need to achieve EN deassertion by long press with one button and INT pin is not connected to microprocessor.
