Question
STPM32 Datasheet update 2022
- April 21, 2023
- 0 replies
- 837 views

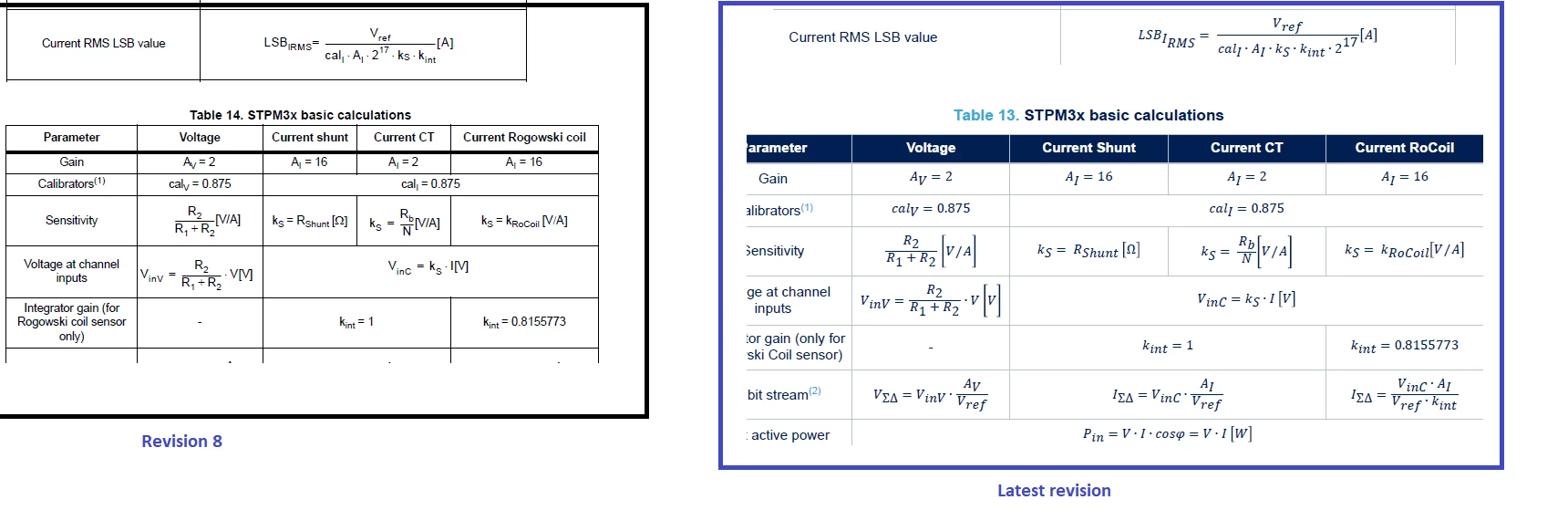

In the current version of datasheet, in the revision history there is written than on 23rd May 2022 there was update of Table 14. However I cannot see difference between Table 14 in the current datasheet and the datasheet I saved before (Rev8).
Problem is that when we purchased STPM32 recently we get different current measurement than expected - 84 mA instead on expected 50 mA. I suspect some change in the formulas but I cannot find it. Can you please help?
