Hello,

I am currently working on the implementation of the STWBC86 chip, following the STEVAL-WBC86TX as a guide. If we want to develop a PCB with the STWBC86 chip, is it possible to load the initial configuration by connecting the PCB via I2C with a USB converter to the computer? Or is external hardware, such as the STM32 development board, required to load the configuration onto our PCB?

Thank you in advance for your attention.

[willzhou]

Hi Deiver

for mcu please refer to this link

SW I2C driver on Github https://github.com/STMicroelectronics/STWirelessCharging-C-Drivers

for computer, you use usb-i2c dongle

STEVAL-USBI2CFT Dongle

• DB5077USB to I2C evaluation board for interfacing wireless applications with PC GUI tool
•
• UM3226Versatile USB- I2C bridge for communication and programming of ST wireless charging IC
•
• STEVAL-USBI2CFT GERBER
•
• STEVAL-USBI2CFT BOM
•
• STEVAL-USBI2CFT SCHEMATIC

[DEIQO]

Thanks for responding.

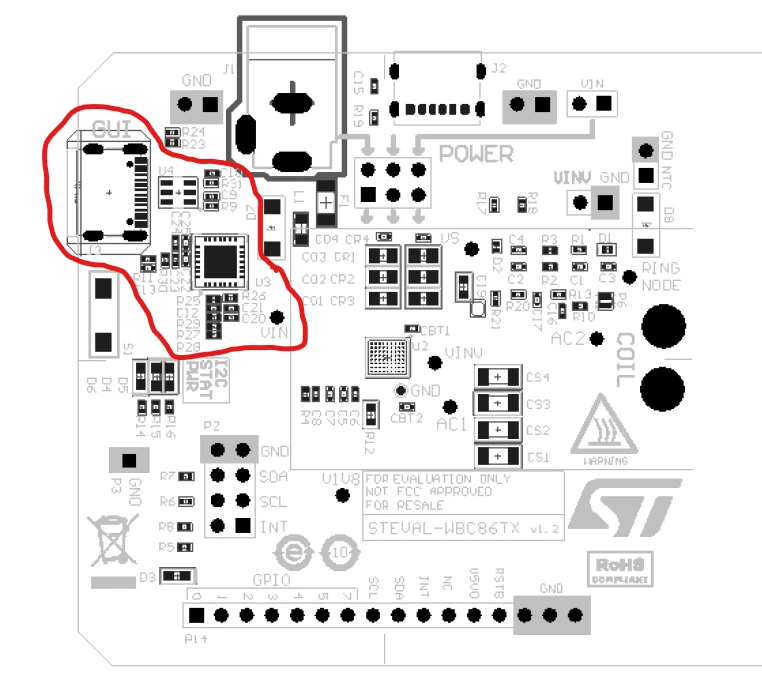

Yes, it turns out that what we want is to replicate the STEVAL-WBC86TX and just remove some things from it, but we see that it comes with a configuration using the FT260Q chip that would be the U3 (in the image), which they use for I2C Communication, converting it to USB- C and from there to the PC. I would like to know if with this same STEVAL chip we can upload the initial configuration of the new board.

[willzhou]

yes

it is same with STEVAL-USBI2CFT Dongle chip
