Question
TCPP03-M20: Errata in Pin Identification
RE: https://www.st.com/resource/en/datasheet/tcpp03-m20.pdf
Footer Notes: DS13618 - Rev 3

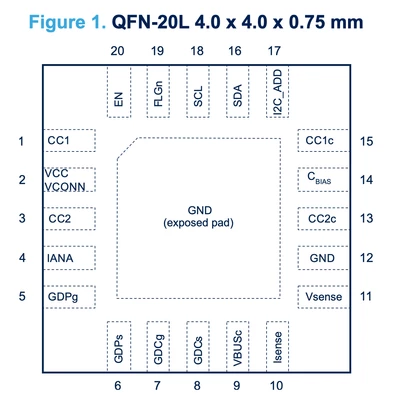

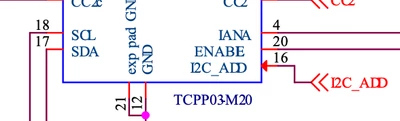

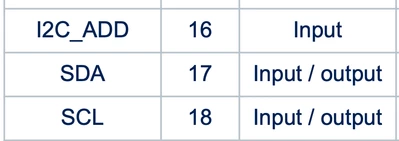

In Figure 1, the pin 16 and pin 17 are swapped:
