Unable to find diode or cross ref

  • June 7, 2024
  • 1 reply
  • 1469 views

I am having difficulty locating information regarding some diodes. These diodes are either zener or TVS.

Can anyone help me identify it? A link to a cross reference information page would be really helpful.

Will be looking to source them for repair projects.

Thank you for your time and efforts.

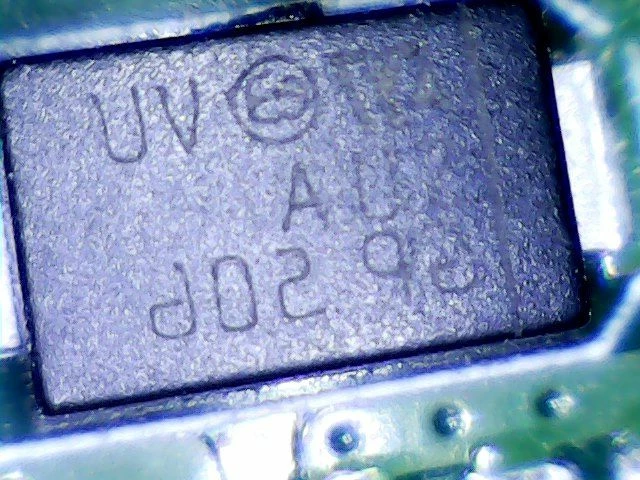

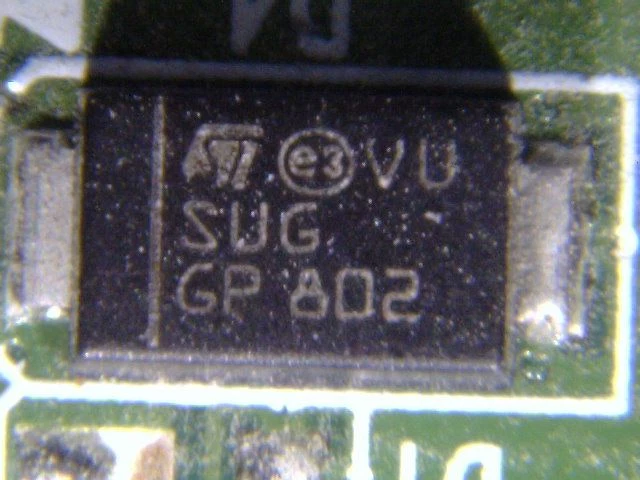

vdc control Diode 2.jpgSnapshot_20240525_1.JPG

Best answer by Peter BENSCH

Welcome @Kazit

marking SUG stands for the SMA6F13A-TR, SUA for the SMA6F5.0A-TR.
Both are obsolete, but can be replaced by SMA6J13A-TR and SMA6J5.0A-TR.

Regards
/Peter

1 reply

Peter BENSCH
Peter BENSCHBest answer
Technical Moderator
June 7, 2024

Welcome @Kazit

marking SUG stands for the SMA6F13A-TR, SUA for the SMA6F5.0A-TR.
Both are obsolete, but can be replaced by SMA6J13A-TR and SMA6J5.0A-TR.

Regards
/Peter

KazitAuthor
Associate
June 8, 2024

Thank you so much for your speedy reply, your efforts are highly apricated.
