Using MPP on stwlc38

[Jvan .23]

Is it possible to use a Qi2 rx coil with magnetic array on a stwlc38 design?

The goal is to use a Qi2 charger and reap the benefits of magnetic alignment and 15W charging while still being on the Qi1.3 standard of the stwlc38.

[willzhou]

Dear Customer

STWLC38 doesn't support Qi 2.0 spec, but Qi2 rx coil can be used.
So you can use Qi2 rx coil and magnetic to do 15W QI 1.3 power transfer.

More information about STWLC38

• DB5040Wireless power receiver evaluation board for Qi BPP/EPP applications
• AN5961Wireless power transfer coil design
• UM3154Getting started with the STEVAL-WLC38RX wireless power receiver evaluation board for 5 W Qi BPP and 15 W Qi EPP applications
• STEVAL-WLC38RX GERBER
• STEVAL-WLC38RX BOM
• STEVAL-WLC38RX SCHEMATIC
• https://github.com/STwirelesscharger/

[willzhou]

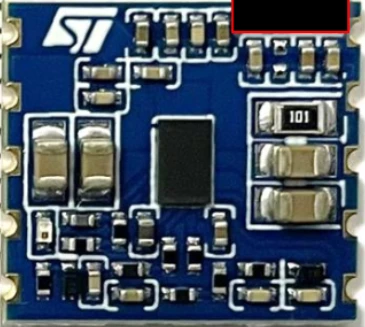

We plan to release MPP stamp module, do you consider it?



[ivantan]

Dear Will

we are doing QI1.3 RX with magnetic but the progress is not going smoothly, and the time is limited, we must go ahead anyway.

and also will be going to make mpp standard RX, can you send me more information , thanks



TJ

[Jvan .23]

Interesting. If we would have to start over the project (so the layout was not done already) we would definitely consider it, also depends on pricing.
