VN5050AJ CS_DIS not working - again

[rkager]

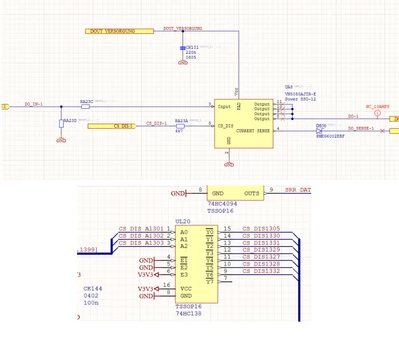

As in https://community.st.com/t5/power-management/vn5050aj-cs-dis-not-working/m-p/632201#M10745 we now have added seriel diodes for every chip, but it is still not disabling his Current_Sense Output altough the CS_DIS Pin is above 3V.  The CS_DIS-1 Signal is comming from an 74HC138 so there is just always on VN5050 selected. The same principial is working fine on VND5160.

Any advice would be appricatied

[rkager]

We have found the issue. The dual chip version is mounted on the PCBs. As the pinning is nearly the same, the output is working but the current sense / CS_DIS has off course a strange behavior.
