What is the difference between them? Are they all commercial samples?

  • July 20, 2022
  • 3 replies
  • 1187 views

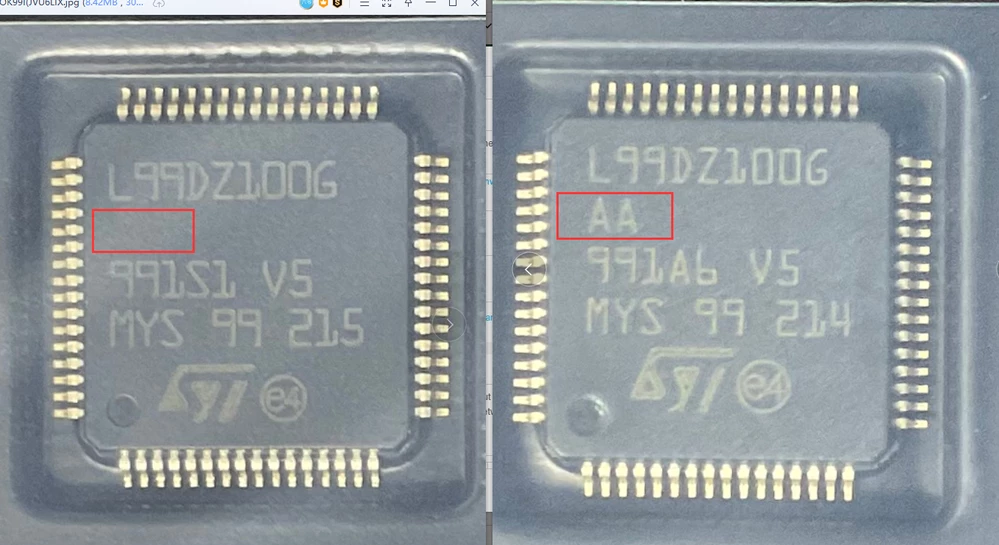

 The same Part Number: L99DZ100GTR, but one part marking is L99DZ100G while another is L99DZ100G AA. What is the difference between them? Are they both commercial samples?0693W00000QLdP1QAL.png0693W00000QLdQEQA1.png

    This topic has been closed for replies.
    Best answer by Peter BENSCH

    Thank you, @Community member​ for bringing this to my attention. The suffixes -ABH and -AB on the labels are internal markings which are neither relevant for the end user nor have any influence on the technical parameters. The marking AA in the second line on one of the devices only indicates the most recent die revision. Both devices should behave identically.

    Does this answer your question?

    Regards

    /Peter

    3 replies

    Tesla DeLorean
    Guru
    July 20, 2022

    It could indicate a line, sub-lot or molding change, looks different

    AA? ASE Kaohsiung Taiwan product moved through ST Malaysia?

    @Peter BENSCH​

    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    EJian.2
    EJian.2Author
    Associate II
    July 21, 2022

    thanks for your reply.

    Peter BENSCH
    Peter BENSCHBest answer
    Technical Moderator
    July 20, 2022

    Thank you, @Community member​ for bringing this to my attention. The suffixes -ABH and -AB on the labels are internal markings which are neither relevant for the end user nor have any influence on the technical parameters. The marking AA in the second line on one of the devices only indicates the most recent die revision. Both devices should behave identically.

    Does this answer your question?

    Regards

    /Peter

    EJian.2
    EJian.2Author
    Associate II
    July 21, 2022

    Thanks
