How to create a project for STM32H7 with Ethernet and LwIP stack working

  • March 11, 2020
  • 54 replies
  • 290842 views

This readme is intended for STM32CubeIDE version 1.9.0 and STM32CubeH7 version 1.10.0. For older tool versions please see older version of this readme in the repository.

If you have any questions regarding Ethernet topics in general, please visit our MCU forum and create a thread. Doing so will provide you with a shorter response time.

Example project code and older version of this article is provided on Github: https://github.com/stm32-hotspot/STM32H7-LwIP-Examples. Detailed how to step-by-step is provided below.

Features

  • Fixed IP address 192.168.1.10
  • Code should work even when re-generating the code in STM32CubeMX
  • Changes in code can be find by searching for
    ETH_CODE
    keyword

Release notes

Version STM32CubeIDE version STM32CubeH7 version Description / Update Date
1.2 1.9.0 1.10.0 Ported to new IDE/library version. Ethernet driver reworked in new library release. Added iperf measurement and TCP/IP settings tuned. Published on Github August 9th 2022
1.1 1.6.1 1.9.0 Added Cortex-M4 base examples July 19th 2021
1.0 1.6.1 1.9.0 Initial release on ST community (with minor changes on Github) June 21st 2021

Using GIT tags it should be easy to find examples for particular version of STM32CubeIDE and HAL library

TCP/IP configuration in LwIP

Below configuration is necessary to achieve good TCP/IP performance

Parameter Value Formula Needs to be changed in MX
TCP_MSS 1460
1500-40
yes
TCP_SND_BUF 5840
4 * TCP_MSS
yes
TCP_WND 5840
4 * TCP_MSS
no
TCP_SND_QUEUELEN 16
UPPER((4 * TCP_SND_BUF) / TCP_MSS)
yes

Memory layout

On STM32H74x/H75x devices, all data related to Ethernet and LwIP are placed in D2 SRAM memory (288kB). First 128kB of this memory are reserved for Cortex-M4 on dual-core devices. On single core devices this part can be used for other purposes.

Variable STM32H74x/H75x address Cortex-M4 alias Size Source file
DMARxDscrTab 0x30040000 0x10040000 96 (256 max.) ethernetif.c
DMATxDscrTab 0x30040100 0x10040100 96 (256 max.) ethernetif.c
memp_memory_RX_POOL_base 0x30040200 0x10040200 12*(1536 + 24) ethernetif.c
LwIP heap 0x30020000 0x10020000 131048 (128kB - 24) lwipopts.h

For STM32H72x/H73x devices, the D2 SRAM is more limited (only 32kB). The RX buffers need to be placed in AXI SRAM, since they won't fit to D2 RAM, together with LwIP heap. The LwIP heap is reduced to fit the rest of D2 RAM together with DMA descriptors.

Variable STM32H72x/H73x address Size Source file
DMARxDscrTab 0x30000000 96 (256 max.) ethernetif.c
DMATxDscrTab 0x30000100 96 (256 max.) ethernetif.c
memp_memory_RX_POOL_base AXI SRAM (32-byte aligned) 12*(1536 + 24) ethernetif.c
LwIP heap 0x30000200 32232 (32kB - 512 - 24) lwipopts.h

Value provided here are an example implementation, other configurations are also possible in order to optimize memory usage. When changing memory layout, the MPU configuration needs to be updated accordingly.

License

Libraries and middleware is taken from STM32CubeH7 package. So the same licenses apply to the these examples. There is minimum code added on top of STM32CubeMX and HAL libraries, this code is provided AS-IS.

How to create project from scratch

Goal

Goal of this example is to:

  • Configure project in STM32CubeMX for STM32H750-Discovery
  • Configure FreeRTOS and LwIP middlewares correctly
  • Send UDP message periodically (optional)

Although the example is using STM32H750-Discovery, it might be easy to use the same steps for other STM32H7 based boards. The main differences are usually pinout and clock configuration. You might also need to check board solder bridges to make sure the Ethernet is connected to MCU.

STM32CubeMX project configuration

  • Create new project in STM32CubeMX, select STM32H750-Discovery board and select "No" to "Initialize all peripherals in default mode?" pop-up.
    • This will help with pin assignment.

Basic configuration

Configure clock tree:

  • In pinout/RCC configure HSE in bypass mode
  • In clock tree configure 400MHz for core


  • In pinout/SYS configure different timebase than SysTick (recommended when using FreeRTOS)
    • TIM6 is usually a good option, since it is a simple timer

Ethernet configuration

  • Enable Ethernet peripheral in pinout view in MII mode (MII used on the board).
  • Enable Ethernet interrupt and set preemption priority to 5. This is required by FreeRTOS in order to call its functions from interrupt handler.
  • Relocate Ethernet CRS and COL signals from PH2/PH3 to PA0/PA3
    • These signals are optional in full-duplex mode and not connected in default configuration
    • This will also allow use PH2/PH3 for QSPI
  • Other pins should be correctly placed, since we create the project from board selector.


  • Set GPIO pin speed to Very High.


The ETH_MDC speed couldn't be changed for some reason, but it doesn't affect the application and it was already fixed in new versions.

Cortex-M7 configuration

This step can be skipped when using Cortex-M4 core.

  • Enable ICache and DCache.
  • Enable memory protection unit (MPU) in “Background Region Privileged access only + MPU Disabled ...” mode. Configure regions according to the picture below:


Above example is for STM32H743 device. For other devices or Cortex-M4 core on dual-core device, different addresses and size might be necessary. Please refer to section Memory layout

When using dual-core device and running Ethernet on Cortex-M7 core, it must be ensured that memory used by Ethernet is not used by Cortex-M4. Also note the Cortex-M4 can use different address alias for D2 RAM

FreeRTOS configuration

  • Enable the FreeRTOS with CMSIS_V1 API.
  • Increase the size of defaultTask stack to 512 words1
  • Lower stack values cause memory corruptions
  • Please check also that the generated code is correct, since there is bug when increasing the MINIMAL_STACK_SIZE and there might be old value in code (this should be fixed in new versions)


LwIP configuration

  • Enable LwIP in middleware.
  • In "General settings" tab, disable DHCP server and configure fixed IP address (unless you know how to configure and use DHCP).


  • In the attached examples, the 192.168.1.10 IP address is used (instead of 192.168.0.10 shown on the screenshot).
  • In "Platform settings" tab select "LAN8742" in both select boxes. The LAN8742 driver is also compatible with LAN8740 device, which is actually present on the STM32H750-Discovery board. The main difference between these devices is support of MII interface. On other boards LAN8742 PHY chip is used.


In "Key options" tab:

  • Configure MEM_SIZE to 16360. This specifies the heap size, which we will relocated to D2 SRAM (16kb minus 24 bytes for allocator metadata).
  • Also enable LWIP_NETIF_LINK_CALLBACK (needed for cable plugging/unplugging detection).
  • Set the LWIP_RAM_HEAP_POINTER to proper address2
  • Set the MEM_SIZE parameter to proper size2


  • (Should be done automatically by new CubeMX) In "Checksum" tab enable CHECKSUM_BY_HARDWARE. Other options should automatically reconfigure and you can leave them in this state.


Generate project

Save project to some folder of your selection. Now you can generate the project for IDE. We will use STM32CubeIDE in this example, but it should work with other IDEs.

Modyfying the code (STM32CubeIDE)

There are several places where some additional code should be placed, also depending on selected device. In the examples all these places are marked with comment containing

ETH_CODE

and some basic explanation. Searching for

ETH_CODE

can show all these places.

Only main interesting points are mentioned below:

  • Placement of the RX_POOL buffers (although we configured the address in CubeMX) in ethernetif.c2:
/* USER CODE BEGIN 2 */
#if defined ( __ICCARM__ ) /*!< IAR Compiler */
#pragma location = 0x30040200
extern u8_t memp_memory_RX_POOL_base[];

#elif defined ( __CC_ARM ) /* MDK ARM Compiler */
__attribute__((at(0x30040200)) extern u8_t memp_memory_RX_POOL_base[];

#elif defined ( __GNUC__ ) /* GNU Compiler */
__attribute__((section(".Rx_PoolSection"))) extern u8_t memp_memory_RX_POOL_base[];

#endif
/* USER CODE END 2 */
/* USER CODE BEGIN 1 /
#undef LWIP_PROVIDE_ERRNO
#define LWIP_ERRNO_STDINCLUDE
/ USER CODE END 1 */
  • Add DATA_IN_D2_SRAM to macro definitions in project:


Modify linkerscript (not valid for Keil/IAR)2

This step should be skipped for Keil and IAR, since they support placing variables at specific address in C code. Modify the linkerscript (*.ld) that the ETH descriptors and buffers are located in D2 SRAM. Also it is recommended to place all RAM to RAM_D1. In STM32CubeMX generated project, the "_FLASH" suffix linkerscript should be modified, which is used by default (e.g.: STM32H750XBHx_FLASH.ld). The "_RAM" suffix linkerscript is template for executing code from internal RAM memory.

 } >RAM_D1

 /* Modification start */
 .lwip_sec (NOLOAD) :
 {
 . = ABSOLUTE(0x30040000);
 *(.RxDecripSection)

 . = ABSOLUTE(0x30040060);
 *(.TxDecripSection)

 . = ABSOLUTE(0x30040200);
 *(.Rx_PoolSection)
 } >RAM_D2
 /* Modification end */

 /* Remove information from the compiler libraries */
 /DISCARD/ :
 {
 libc.a ( * )
 libm.a ( * )
 libgcc.a ( * )
 }

The memory definitions at the beginning of the linkerscript should look like:

MEMORY
{
 FLASH (rx) : ORIGIN = 0x08000000, LENGTH = 128K
 DTCMRAM (xrw) : ORIGIN = 0x20000000, LENGTH = 128K
 RAM_D1 (xrw) : ORIGIN = 0x24000000, LENGTH = 512K
 RAM_D2 (xrw) : ORIGIN = 0x30000000, LENGTH = 288K
 RAM_D3 (xrw) : ORIGIN = 0x38000000, LENGTH = 64K
 ITCMRAM (xrw) : ORIGIN = 0x00000000, LENGTH = 64K
}

For dual core devices it is better to restrict RAM_D2 section to avoid collision with Cortex-M4. Please see the linkerscripts in examples.

(Optional) Adding simple Hello UDP message

  • Add following include files at the beginning of main.c:
#include “lwip/udp.h”
#include <string.h>
  • Modify the StartDefaultTask in main.c with the following code:
/* USER CODE BEGIN 5 */
const char* message = "Hello UDP message!\n\r";

osDelay(1000);

ip_addr_t PC_IPADDR;
IP_ADDR4(&PC_IPADDR, 192, 168, 1, 1);

struct udp_pcb* my_udp = udp_new();
udp_connect(my_udp, &PC_IPADDR, 55151);
struct pbuf* udp_buffer = NULL;

/* Infinite loop */
for (;;) {
 osDelay(1000);
 /* !! PBUF_RAM is critical for correct operation !! */
 udp_buffer = pbuf_alloc(PBUF_TRANSPORT, strlen(message), PBUF_RAM);

 if (udp_buffer != NULL) {
 memcpy(udp_buffer->payload, message, strlen(message));
 udp_send(my_udp, udp_buffer);
 pbuf_free(udp_buffer);
 }
}
/* USER CODE END 5 */

Now you should be able to ping the device and receive UDP messages, assuming that you configure IP address 192.168.1.1 for the receiving device (the 192.168.1.0/24 network is used by attached examples). On Linux machine you can observe the messages with the following command:

netcat –ul 55151

Tips & common mistakes

  1. For STM32H72x/H73x devices, the Ethernet buffers can't be placed in address range 0x30040000 - 0x30048000, since that range is not valid. D2 SRAM on those devices is much smaller, so the buffers need to be placed starting at 0x30000000. This affects RX & TX descriptors and RX buffer addresses (ETH configuration in CubeMX) and LWIP_RAM_HEAP_POINTER used for TX buffers (LWIP > Key options in CubeMX).
  2. When running the stack on Cortex-M4, the buffers can be placed at the same address (0x30040000), but it is better to place them at 0x10040000 which is alias for the same address. This alias is accessible by Cortex-M4 D-bus and helps to utilize the Harvard architecture.
  3. When not using FreeRTOS, the Ethernet interrupt should be disabled and MX_LWIP_Process should be called periodically (in main loop).
  4. On STM32H747-Discovery board, modification needs to be done to default solder bridge configuration. SB8 should be closed and SB21 should be open for Ethernet to work, otherwise the MDC signal is not properly connected.

When facing issues with your own project:

  1. First try example and see if there is proper configuration on PC side. With corporate firewalls and restrictions, it might be difficult to perform simple ping to specific IP address. In some cases it is easier to test from personal PC, or some PC with firewall disabled.
  2. Check if Ethernet interrupt is called and if RX callback is called
    • If not, GPIOs are set to proper speed (very high)
    • and ETH global interrupt is enabled (only for FreeRTOS)
      • Interrupt priority should be 5 - preemption and 0 - subpriority. This is required by default FreeRTOS configuration.
  3. If Hardfault is called, the problem might be in MPU configuration
    • Please check carefully (e.g. slight mistake like having "256KB" instead "256B" can make big difference) 1 RX callback is called but ping still not work
    • check that the buffers are properly placed in linkerscript (the one ending with "_FLASH.ld")
    • in STM32CubeIDE you can use "Build analyzer" window
  4. When allocating buffers via pbuf_alloc (or similar), PBUF_RAM must be used as 3rd parameter. This is necessary to ensure that the allocated buffer is placed in D2 SRAM and synchronized with DMA
  5. Not sufficient stack size for different thread can cause issues.

Questions & Feedback

If you see any issue with these examples please fill an issue inside this repository. If you face some difficulties, but not sure if this is an issue you can start discussion inside this repository, or you can start thread on ST community


  1. Exact size required for different stacks might depend on used compiler and optimization flags. Same goes for FreeRTOS heap size, since thread stacks are allocated from this heap.

  2. Some addresses and sizes depend on the device or core used. Please refer to section Memory layout.

If you have any questions regarding Ethernet topics in general, please visit our MCU forum and create a thread. Doing so will provide you with a shorter response time.

This topic has been closed for replies.

54 replies

JYI
Associate II
June 29, 2023

Hi, Adam,

I am referencing you and others posts for the STM32Hx Ethernet issues to try to make my own board to work.

Unfortunately, my board is still not working after about two weeks debugging.

Basically, I am using STM32H723VG with LAN8740 for MII with development tools STM32CubeIde Version 1.11.2 and STM32Cube_FW_H7_V1.11.0 + LWIP without RTOS.

Referencing the posts here, I've made some adjustments for MPU and _Flash.ld.

The Rx Buffer is located at D1(0x2400C000) and set LWIP_RAM_HEAP_POINTER to 0x30000400.

I have tested the hardware interface by verification LAN8740 registers and cable connection indicating that hardware is working since link status and auto-negotiation working properly and Rx and Tx signals are observed once the DHCP is starting. But STM has not received the message from the router since DHCP will be time out.

I've reviewed lots of posts about H7 ethernet issue, but still couldn't figure out what is missing.

Any suggestions will be appreciated.

I've posted some info below for the reference.

Thanks.

Junbo



// MPU setting

static void MPU_Config(void)
{
MPU_Region_InitTypeDef MPU_InitStruct;

/* Disable the MPU */
HAL_MPU_Disable();

/* Configure the MPU as Strongly ordered for not defined regions
* Disable speculative access to unused memories
*/
MPU_InitStruct.Number = MPU_REGION_NUMBER0;
MPU_InitStruct.Enable = MPU_REGION_ENABLE;
MPU_InitStruct.BaseAddress = 0x00;
MPU_InitStruct.Size = MPU_REGION_SIZE_4GB;
MPU_InitStruct.SubRegionDisable = 0x87;
MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL0;
MPU_InitStruct.AccessPermission = MPU_REGION_NO_ACCESS;
MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_DISABLE;
MPU_InitStruct.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;
MPU_InitStruct.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;
MPU_InitStruct.IsShareable = MPU_ACCESS_SHAREABLE;

HAL_MPU_ConfigRegion(&MPU_InitStruct);

/* Configure the MPU attributes as Device not cacheable
   for ETH DMA descriptors */
MPU_InitStruct.Number = MPU_REGION_NUMBER1;
MPU_InitStruct.Enable = MPU_REGION_ENABLE;
MPU_InitStruct.BaseAddress = 0x30000000;
MPU_InitStruct.Size = MPU_REGION_SIZE_1KB;
MPU_InitStruct.SubRegionDisable = 0x00;
MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL0;
MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_DISABLE;
MPU_InitStruct.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;
MPU_InitStruct.IsBufferable = MPU_ACCESS_BUFFERABLE;
MPU_InitStruct.IsShareable = MPU_ACCESS_SHAREABLE;

HAL_MPU_ConfigRegion(&MPU_InitStruct);

/* Configure the MPU attributes as Normal Non Cacheable
     for LwIP RAM heap which contains the Tx buffers  */
MPU_InitStruct.Number = MPU_REGION_NUMBER2;
MPU_InitStruct.Enable = MPU_REGION_ENABLE;
MPU_InitStruct.BaseAddress = 0x30000400;
MPU_InitStruct.Size = MPU_REGION_SIZE_32KB;
MPU_InitStruct.SubRegionDisable = 0x00;
MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL1;
MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_DISABLE;
MPU_InitStruct.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;
MPU_InitStruct.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;
MPU_InitStruct.IsShareable = MPU_ACCESS_NOT_SHAREABLE;
    HAL_MPU_ConfigRegion(&MPU_InitStruct);
*/
    /*
     * Enable the MPU
     */
    HAL_MPU_Enable(MPU_PRIVILEGED_DEFAULT);
}

// _Flash.ld

// RX buffer
.lwip_rx_pool_sec (NOLOAD) :
{
. = ABSOLUTE(0x2400C000);
*(.Rx_PoolSection)
} >RAM_D1 AT> FLASH

/* lwip: add placement of DMA descriptors */
.lwip_dma_desc_sec (NOLOAD) :
{
. = ABSOLUTE(0x30000000);
*(.RxDecripSection)

. = ABSOLUTE(0x30000200);
*(.TxDecripSection)
} >RAM_D2 AT> FLASH

// .map

.lwip_rx_pool_sec
0x000000002400b740 0x5453 load address 0x0000000008030454
0x000000002400c000 . = ABSOLUTE (0x2400c000)
*fill* 0x000000002400b740 0x8c0
*(.Rx_PoolSection)
.Rx_PoolSection
0x000000002400c000 0x4b93 ./LWIP/Target/ethernetif.o
0x000000002400c000 memp_memory_RX_POOL_base

.lwip_dma_desc_sec
0x0000000030000000 0x2c0 load address 0x0000000008030454
0x0000000030000000 . = ABSOLUTE (0x30000000)
*(.RxDecripSection)
.RxDecripSection
0x0000000030000000 0xc0 ./LWIP/Target/ethernetif.o
0x0000000030000000 DMARxDscrTab
0x0000000030000200 . = ABSOLUTE (0x30000200)
*fill* 0x00000000300000c0 0x140
*(.TxDecripSection)
.TxDecripSection
0x0000000030000200 0xc0 ./LWIP/Target/ethernetif.o
0x0000000030000200 DMATxDscrTab

// DHCP log

Hard Reset PHY LAN8740....
LWIP Init....
netif: added interface st IP
addr
0.0.0.0
netmask
0.0.0.0
gw
0.0.0.0


netif: setting default interface st

Link UP(5)
FULL-DUPLEX(10M)
dhcp_start(netif=0x2400507c) st0

dhcp_start(): mallocing new DHCP client

dhcp_start(): allocated dhcp
dhcp_start(): starting DHCP configuration

udp_bind(ipaddr =
0.0.0.0
, port = 68)

udp_bind: bound to
0.0.0.0
, port 68)

udp_connect: connected to
0.0.0.0
, port 67)

dhcp_discover()

dhcp_create_msg()

transaction id: xid(4bb5f646)

dhcp_discover: making request

dhcp_discover: sendto(DISCOVER, IP_ADDR_BROADCAST, LWIP_IANA_PORT_DHCP_SERVER)

udp_send: added header in given pbuf 0x24009958

udp_send: sending datagram of length 316

udp_send: UDP packet length 316

udp_send: UDP checksum 0xf701

udp_send: ip_output_if (,,,,0x11,)

ip4_output_if: st0

IP header:

+-------------------------------+

| 4 | 5 | 0x00 | 336 | (v, hl, tos, len)

+-------------------------------+

| 0 |000| 0 | (id, flags, offset)

+-------------------------------+

| 255 | 17 | 0xba9d | (ttl, proto, chksum)

+-------------------------------+

| 0 | 0 | 0 | 0 | (src)

+-------------------------------+

| 255 | 255 | 255 | 255 | (dest)

+-------------------------------+

ip4_output_if: call netif->output()

etharp_output()

ethernet_output()

ethernet_output: sending packet 0x24009958

dhcp_discover: deleting()ing

dhcp_discover: SELECTING

dhcp_discover(): set request timeout 2000 msecs

dhcp_fine_tmr(): request timeout

dhcp_timeout()

dhcp_timeout(): restarting discovery



HLe.2
Visitor II
July 14, 2023

Hello Mr. Adam BERLINGER

Thank you so much for the very helpful article.

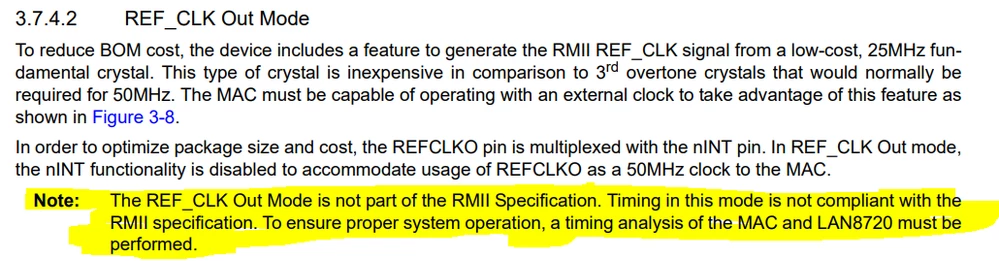

I'm making a simple board based on STM32H7 and LAN8720 (currently I don't have LAN8742). I just started using STM32, I follow your tutorial and samples code on github, ping is OK but it disconnects after some time (please see the log below).

Do I need to change any parameters? Please give me some suggestions.



Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=2ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=2ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=2ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=3ms TTL=255
Reply from 192.168.1.123: bytes=32 time=7ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=3ms TTL=255
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.123: bytes=32 time=2ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=3ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=3ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Request timed out.
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time<1ms TTL=255
Reply from 192.168.1.123: bytes=32 time=1ms TTL=255

Associate II
August 17, 2023

Bumping this.

I have the exact issue others are talking about in this thread with the pbuf assert

Assertion "pbuf_free: p->ref > 0" failed at line 753 in ../Middlewares/Third_Party/LwIP/src/core/pbuf.c

 There is so much conflicting information and so many different memory configurations being discussed on these forums and in the ST code. The information from ST has been extremely hard to follow. For example, why does the memory config from this repo differ from the CubeH7 V1.11?

I am using CubeH7 V1.11.0 with the exact memory layout it recommends:

"

.lwip_sec (NOLOAD) :
{
. = ABSOLUTE(0x30000000);
*(.RxDescripSection)

. = ABSOLUTE(0x30000200);
*(.TxDescripSection)

. = ABSOLUTE(0x30000400);
*(.Rx_PoolSection)

} >RAM_D2

"

@Adam BERLINGER @STOne-32 Can we please get an update with a working setup, which does not have pbuf assert issues, with v1.11? *Have the CubeH7 Stm32H723 examples ever actually been seen to work without memory issues?*

Thanks,

Snm.1
Associate III
August 17, 2023

Hello I want to use stm32h747 s ethernet periferal. But ı have to use Rmii and without rtos mode. I gues can you help me??

STOne-32
Technical Moderator
August 17, 2023

Dear @arena_chris1seto ,

Our technical teams are working on it right now in the Opened ticket and will be back to you shortly,  we need absolutely to replicate the behavior using our environment of board and thank you again for your patience and collaboration to go to the end.

Ciao

STOne-32

Adam BERLINGER
ST Employee
August 18, 2023

Dear all, @HLe.2@arena_chris1seto

unfortunately when LAN8720 is used in REF_CLK_OUT mode (RMII clocks generated by PHY), the timing is not compatible with STM32H7. In that case the RXD output hold is 1.4ns minimum on PHY side, while STM32H7 requires at least 2ns.

Also the datasheets of LAN8720 warns about this compatibility issue.


Such issue is not present when using LAN8742, or supplying 50MHz RMII clock externally. Also please note that STM32H7 PLL output through MCO (Micro-controller clock output) is not suitable for such signal, due to long-term jitter requirements.

Note: STM32F2/F4 and STM32F7 should be still compatible with LAN8720, since they have different timing constraints than STM32H7. But it is better to double-check the particular device.

Best regards,

Adam Berlinger

Associate II
August 22, 2023

Thanks @Adam BERLINGER , yeah I will admit we were caught by this. I'll rework a new RMII reference clock onto the board. Any thoughts on the pbuf issues?

I bought some STM32 Nucleo dev boards to hopefully replicate the issue on official ST hardware with completely unmodified example code.

Laurids_PETERSEN
Community Manager
August 22, 2023

Hi everyone! I'm excited to see all the comments and questions regarding this article.

However, to prevent bloating the comment section and to give you the best possible guidance to your question, I strongly recommend creating a post in our STM32 MCU forum (click here).

This gives you the best possible opportunity to get the answer you need. We have active members that are happy to answer your questions.

Best regards,
Laurids

Associate III
September 29, 2023

Hello everyone,

I know it's been some time since the beginning of the discussion, but the topic is as hot as the first time it was shared.

@IOvch already solved my issues a long time ago, but i couldn't find the uploaded files he talks about in one of his replies. I'm developing the lwip stack on M4 device (stm32H755 nucleo) and it seems to be very tricky, also listening all the relpies and comments, the memory allocation. I have one question especially: is MPU mandatory for M4 config? They are still out of my understanding the definitions of cacheable, bufferable and shareable, could you providwe some documentation about it please?

Thanks in advance

Zaaack

victagayun
Senior III
October 16, 2023

Hello,

It is best to provide IOC files on your next release of the CubeMX update.
