F407IGT6 Failure to use the internal clock correctly

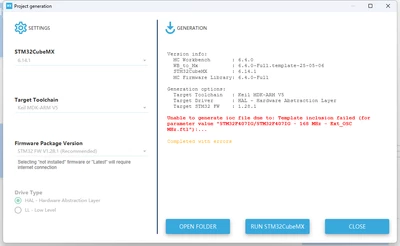

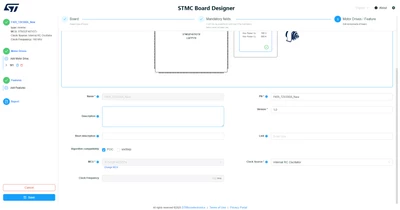

Hello, I am currently creating an inverter using STMC Board Designer, the MCU is STM32F407IGT6,the clock source is internal clock, here are some screenshots of my configuration, it was working fine until the inverter was generated successfully, and when I have everything ready to create the program, I get an error as shown in the picture below.I have version 6.4.0.I'm desperate to know why I'm getting this error, thanks.
Best regards.
{
"type": "inverter",
"contentVersion": "1.0",
"descVersion": 5,
"name": "F407_72V300A_New",
"PN": "F407_72V300A_New",
"algorithmCompatibility": [
"FOC"
],
"mcu": "STM32F407IGTx",
"clockFrequency": 168,
"motorDrives": [
{
"name": "M1",
"minRatedVoltage": 10,
"maxRatedVoltage": 100,
"maxRatedCurrent": 300,
"features": [
{
"type": "CurrentSensing",
"name": "CurrentSensing",
"tRise": 1,
"hwVariants": [
{
"signals": {
"CURRENT_ICS_U": [
{
"name": "PC2",
"help": {},
"cost": 0
}
],
"CURRENT_ICS_V": [
{
"name": "PC3",
"help": {},
"cost": 0
}
]
},
"type": "TwoICSCurrents",
"cost": 0,
"icsGain": 0.0044
}
]
},
{
"type": "PhaseVoltageGeneration",
"name": "PhaseVoltageGeneration",
"hwVariants": [
{
"signals": {
"PWM_CHU_H": [
{
"name": "PA8",
"help": {},
"cost": 0
}
],
"PWM_CHV_H": [
{
"name": "PA9",
"help": {},
"cost": 0
}
],
"PWM_CHW_H": [
{
"name": "PA10",
"help": {},
"cost": 0
}
],
"PWM_CHU_L": [
{
"name": "PA7",
"help": {},
"cost": 0
}
],
"PWM_CHV_L": [
{
"name": "PB0",
"help": {},
"cost": 0
}
],
"PWM_CHW_L": [
{
"name": "PB1",
"help": {},
"cost": 0
}
]
},
"type": "DrivingHighAndLowSides",
"cost": 0,
"deadTime": 3000,
"highSideSwitchesDrivingPolarity": "Active high",
"lowSideSwitchesDrivingPolarity": "Active high"
}
],
"driverPN": "L6230",
"driverName": "L6230",
"tNoise": 1000,
"maxSwitchingFreq": 30,
"minDeadTime": 100
}
]
}
],
"clockSource": "internal_osc",
"features": []
}
