Generate Code with Dual Motor on MC WorkBench

[Harsh_M]

Hi ,

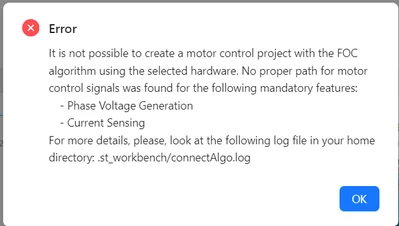

We are working on NUCLEO- F401RE board for motor control and to configure & generate code MC WorkBench(version 6.3.2) is used. We have driven single motor, but we are not able to configure for dual motor below pop up appeared:

Hardware Setup:

Motors:

Power Board:

Control Board:

Connections:

Is there incorrect configuration, or could you please suggest any other combination for dual motor (preferred control board f4 or f7)?

Thanks,

Harsh







[GMA]

Hello @Harsh_M,

To drive two motors, MCU should have two advanced-control timers (only one is available on STM32F401RE MCU).
As mentioned on MCSDK6.3.2, dual drive is not supported on the STM32F7 series.
You can have a look to STEVAL-IHM039V1 board that is Dual Drive capable and based on STM32F415ZG MCU. On the STM32F4 series, only one current sensing configuration: 2ADCs, and ADC1-ADC2 configuration for both motors.
You have to ensure that:

• both motor phase voltage signals could be connected to ADC1/2 Inputs.
• PWM signal could be connected to two different advanced-control timers.

Refer to the MCU reference manual for more detail.

[Harsh_M]

Hi @GMA ,



We have successfully created project with your suggested combination (STEVAL-IHM039V1 board and STM32F415ZG MCU) for dual motor setup.

But when we look into STM32F7 series controllers. It has two different advanced-control timers.

(TIM1 & TIM8).

Could you please explain why F7 not fit for dual motor setup?

Thanks,

Harsh

[GMA]

Hello @Harsh_M,

Feature has not been introduced on STM32F7 series for the moment.

[Harsh_M]

Hi @GMA ,

Is that mean STM32F7 is capable driving two motor with FOC but it is not implemented on MC workbench yet?

Thanks,

Harsh



[cedric H]

Hi @Harsh_M ,

Correct, the hardware is capable, but the MCSDK does not support it.

Regards

Cedric
