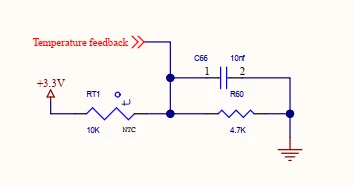

Hi i am using B-G431B-ESC1 Discovery kit with STM32G431CB MCU, i had doubt on the temperature sensor, I have seen the schematics the calculation shall be at 25DegC = 3.3*4.7/(14.7) = 1.05, but the workbench shows 1.4V, why? Please advise.

This topic has been closed for replies.

Senior III

Very very slow response, does anyone from the ST employee reads these messages or not?
