Question

How can I get the example ACIM-NUCLEOG431RB-IHM023V3 projects up and running in MCSDK 5.Y.4?

  • June 24, 2022
  • 0 replies
  • 730 views

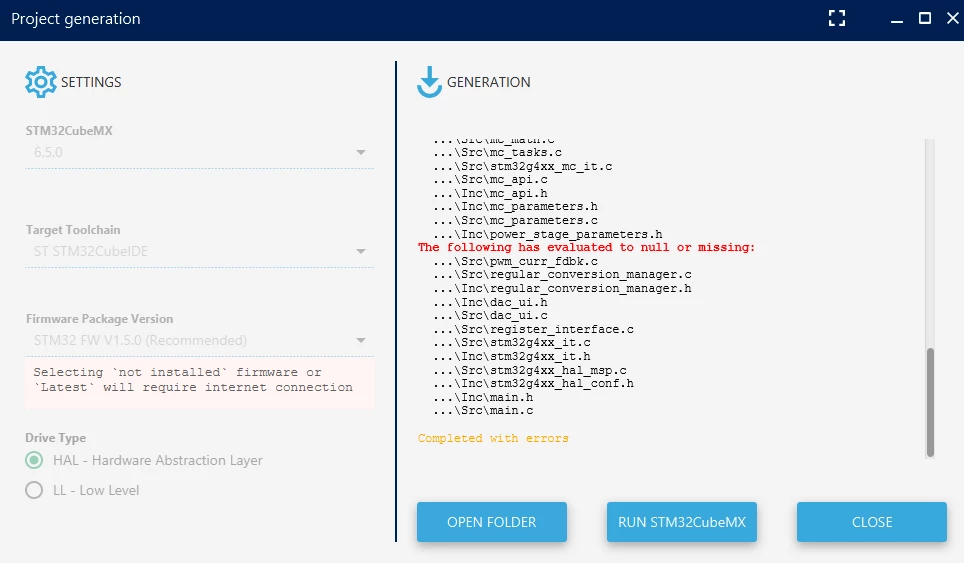

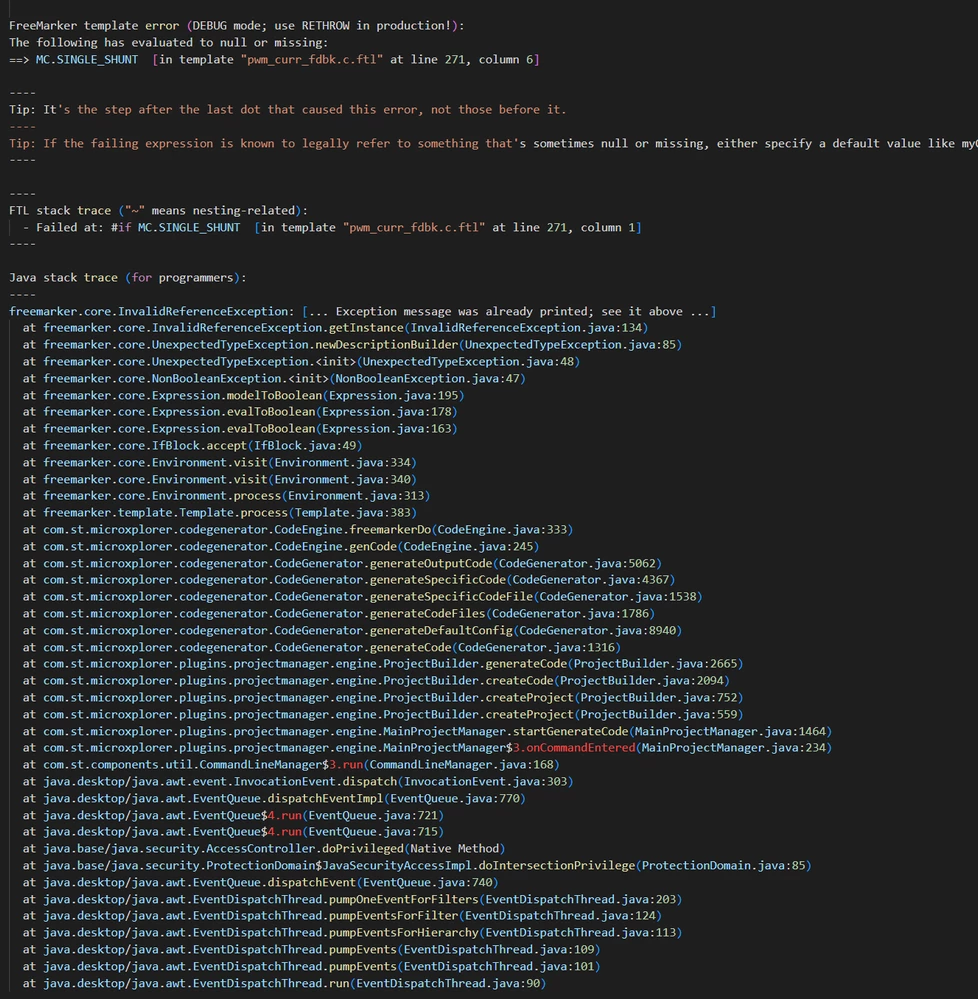

After rigorously following the instructions numerous times with every possible STM32CubeMX, Toolchain, and Firmware configurations, the build always fails to generate ...\Src\pwm_curr_fdbk.c. The error is that MC.SINGLE_SHUNT is "evaluated to null or missing."

I have tried uninstalling and reinstalling, trying to compile anyway, editing the .web_df file, changing settings in the Workbench, and more.



This topic has been closed for replies.
