How do I measure motors with the EVSPIN32G4 board?

[SUNGHWANCHO]

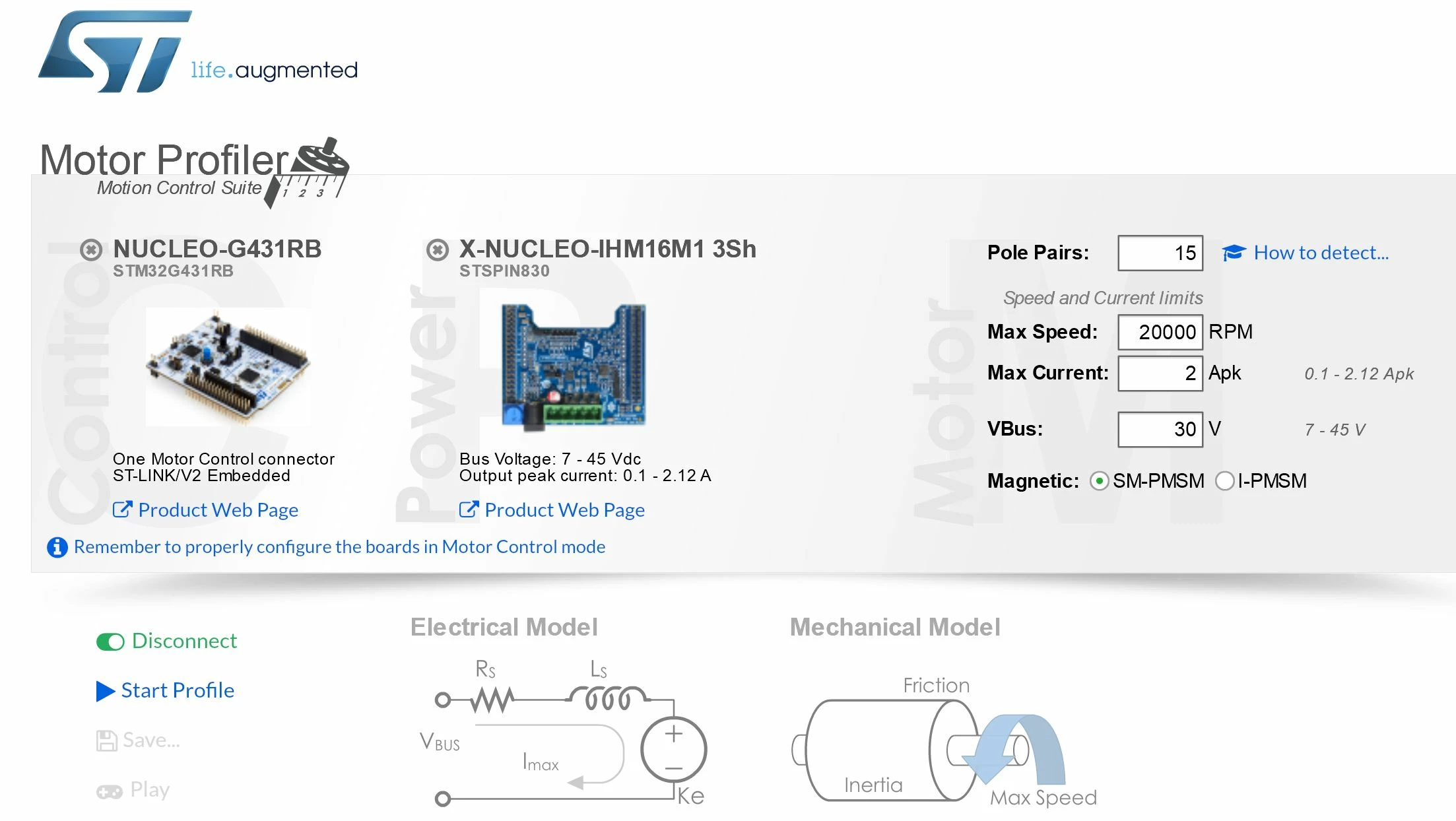

I found the motor value using the Motor Profiler 5.4.8 program (P-NUCLEO-IHM002).
(Figure1)

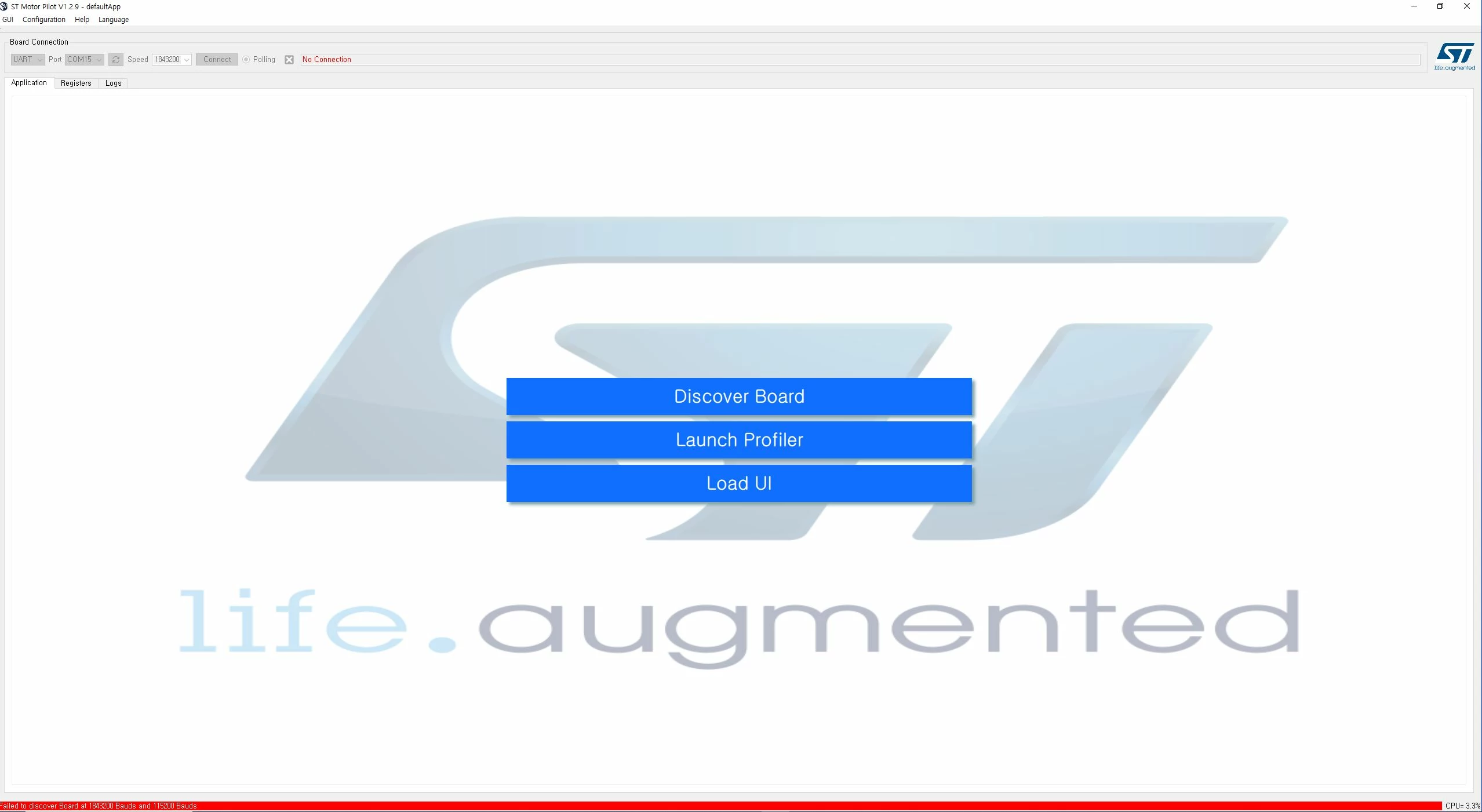

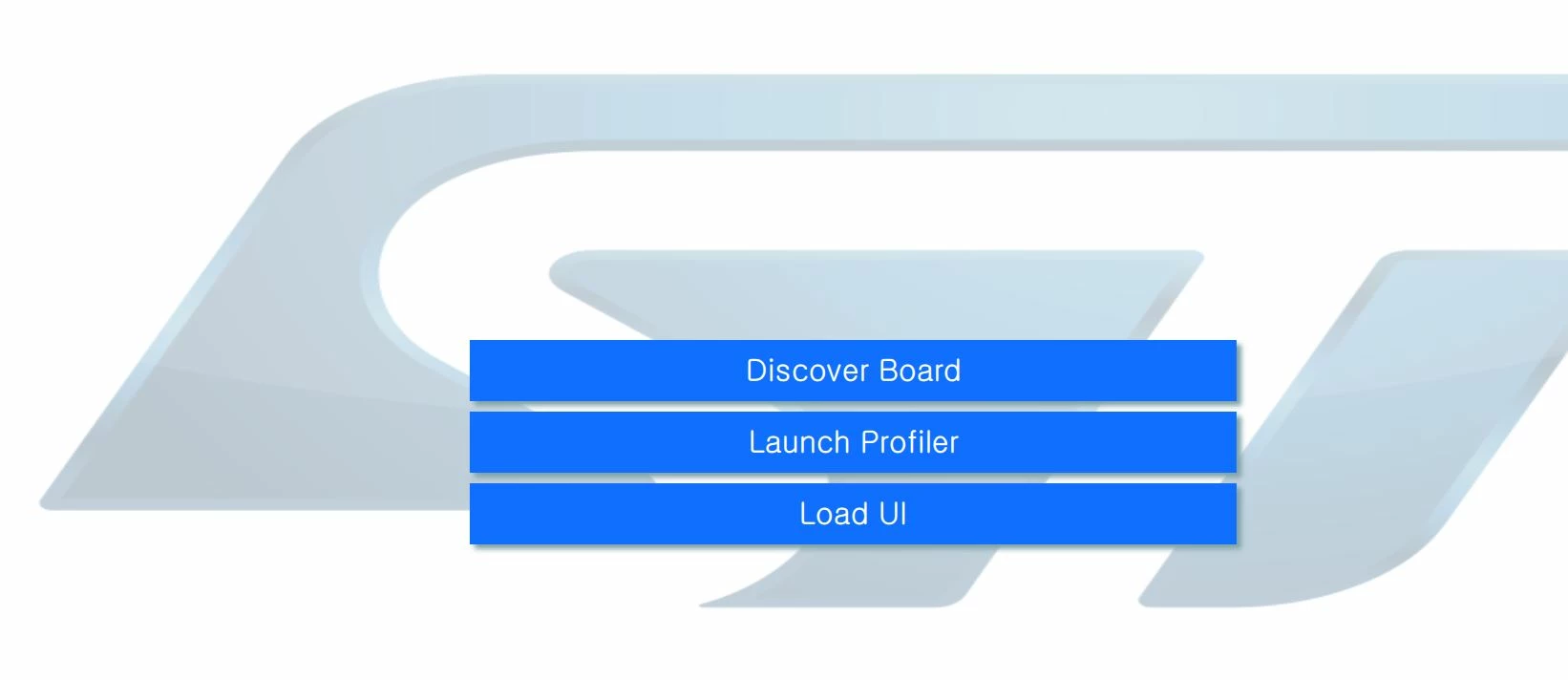

The Motor Pilot_6.3.0 program does not connect using UART.(Discover Board / Launch Profiler)
(Figure3)

Even if I change the UART Speed, the "Port Open and try to configure the board" error only appears.
(Figure4)

I bought EVSPIN32G4 to run the motor at 60v voltage level.

However, I understand that motor measurement is currently not possible with the Motor Profiler 5.4.8 program.

In that case, you need to measure it in the Motor Pilot_6.3.0 program.

I can't check anything because the connection isn't working.

MC_Workbench cannot create a project because there is no motor with similar specifications.

Since I cannot receive the motor value from the motor manufacturer, I have to proceed through measurement. Please tell me how I can do this.

[GMA]

Hello @SUNGHWANCHO,

Please have a look to How_To_manually_configure_the_motor_parameters link.

[SUNGHWANCHO]

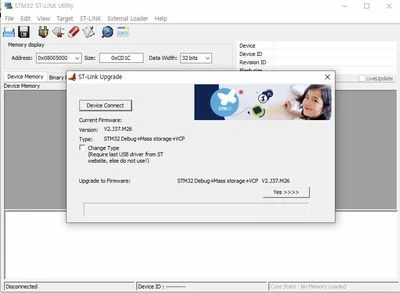

After purchasing EVSPIN32G4, I only updated ST-LINK after connecting Micro USB.

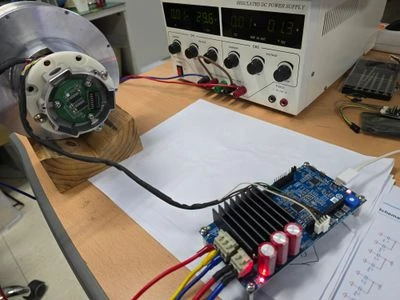

It is connected to the motor as shown below.

The board cannot be connected in ST Motor Pilot.

How do I connect?

[kelvin.wang]

MCSDK 6.3 Profile need user to add FW manually by create new project ,you may refer to MCSDK document in "about" ICON and search "Motor Profiler Application Note"
