how to create the PFC feature code with STEVAL-CTM010V1 board

[Jameszhan]

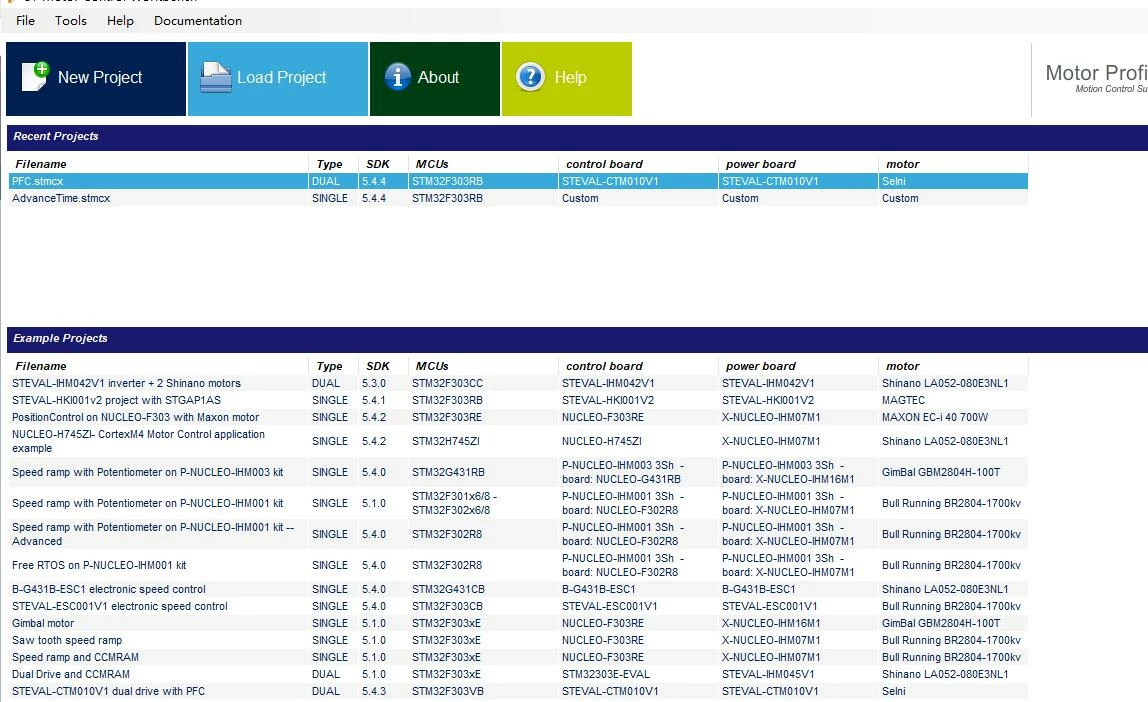

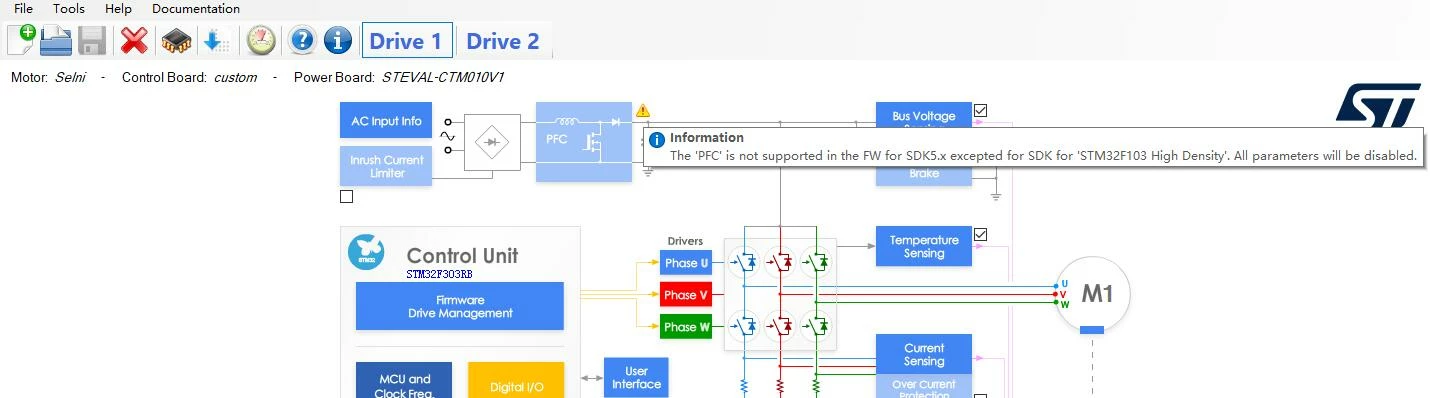

i got a STEVAL-CTM010V1 board and installed the SDK(5.4.4 full),after that i created a project base on example(STEVAL-CTM010V1 dual drive with PFC,see pic_1),but the example does not enable the PFC feature(see pic_2),so if we want to use the PFC feature on CTM010V1 board ,what should we do ?

[Jameszhan]

@Claire OKU (ST Employee)​

[Jameszhan]

i found a tips to fix this issue,just need to modify the config.xml file(C:\Program Files (x86)\STMicroelectronics\MC_SDK_5.4.4\Utilities\PC_Software\STMCWB\assets\xml).

hence,if you remove the warning ,you can config the PFC feature on WB.

.

[RRach.2]

Hi Jameszhan,

Is it safe doing that?

Best Regards,

Rado

[Laurent Ca...]

The question has been moved from the "Motor Control Hardware" section to the "STM32 Motor Control" section (the question is about the STM32 MC SDK).

Best regards

[Lmazz.1]

Any solution to this ?

many thanks
