How to fix the center-aligned problem of the PWM signals?

[DF_MC]

Hello Everybody,

Here are the software and boards in this case:

1. MC workbench 6.4.1
2. STM32 FW V1.28.2

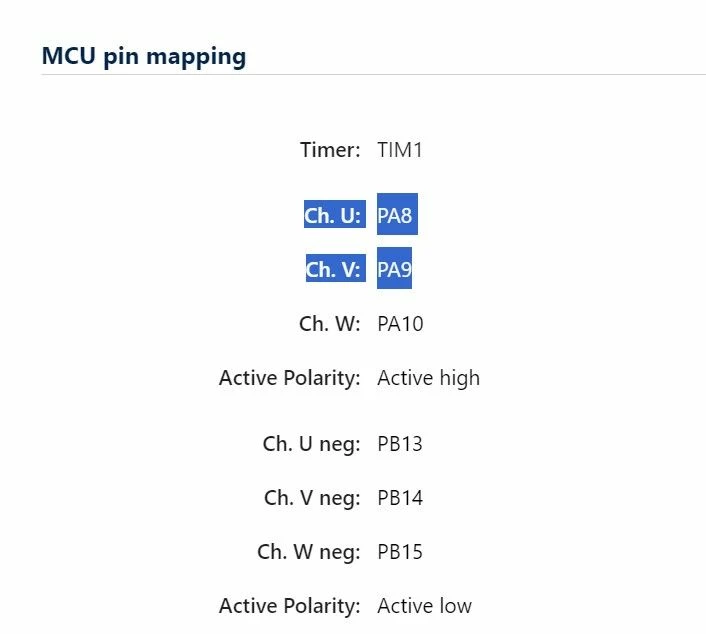

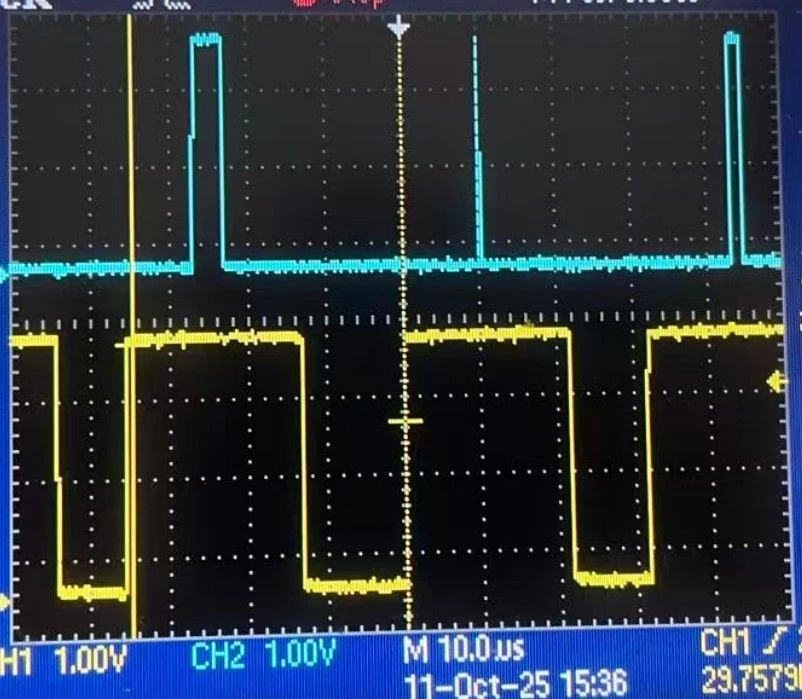

I’m running the code generated by ST MCSDK and noticed that the waveforms on the microcontroller’s U-phase and V-phase channels (see pins Ch. U and Ch. V in picture 2) are not center-aligned—there is a slight offset (see picture 1: the center of the blue waveform is shifted a little to the left relative to the yellow one). How can I fix this? I suspect this mismatch is causing noticeable acoustic noise while the motor is running.

How can I fix the problem? Thank you!

[GMA]

Hello @DF_MC,

For single-shunt topology, a phase shift is applied as described in the Single-shunt with phase-shift current sensing overview chapter of the user manual available through Workbench tool > About > Documentations > Documentation > User manual.

[DF_MC]

Hello, @GMA

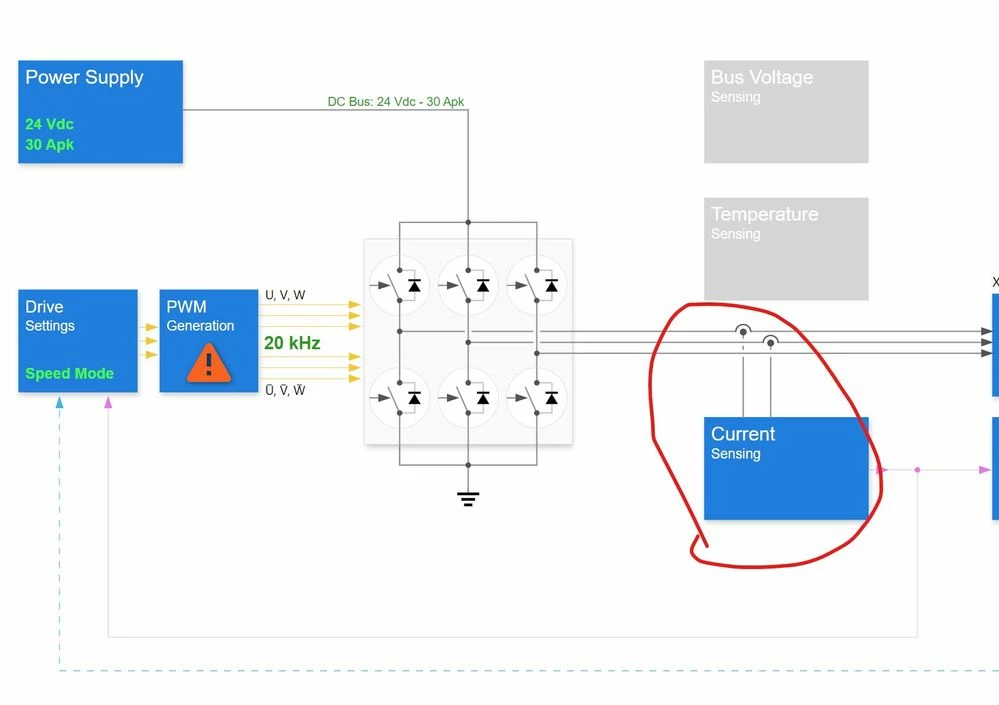

Thanks for your reply. I am using the "isolated current sensor topology" (as shown in the picture below). Should I make any modifications to the generated code to fit my current configuration? Thank you!
