How to modify the BUS VOLTAGE ?

[wcx8229]

Hello,

Why is the bus voltage remain  about 330v when motor max-voltage is changed to 280v ?

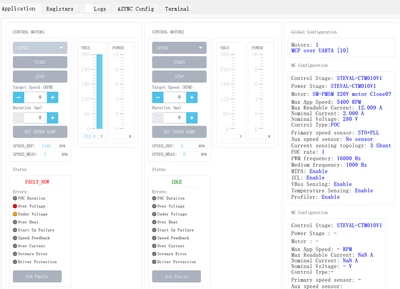

the attchment is the status of Motor Pilot based on STEVAL-CTM010V1 .

[cedric H]

Hello @wcx8229

When Bus voltage sensing is enabled as it is your case for Motor 1, the value is read from the board and does not depend on the motor max-voltage.

How is your board powered?

Regards

Cedric



[wcx8229]

Thanks for your support.

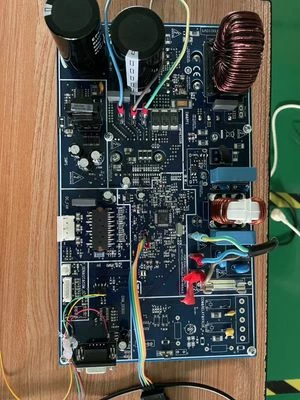

The power input is 220VAC 50HZ .

So could you tell me how can I get a 280v bus voltage ?



[wcx8229]

So steval_ctm0101v1 does not support 280V BLDC motor because of OVER VALTAGE ?



[RobK1]

Just exactly how do you think this thing would be able to make a 280V bus voltage with a 220VAC input?
