how to use Motor Control workbench 5.y.4 , Using example project update motor and generate code?

I am trying to evaluate STSPIN32F0251S1 ,

My requirement is use 6 steps ( trapezoidal ) implementation ,

I tried to use example project from motor control workbench 5.Y.4

[EVSPIN32F0251S1] + [Shinano LA052-080E3NL1] HW setup using

* the Six-Step algorithm Voltage modes and Sensorless

software packages

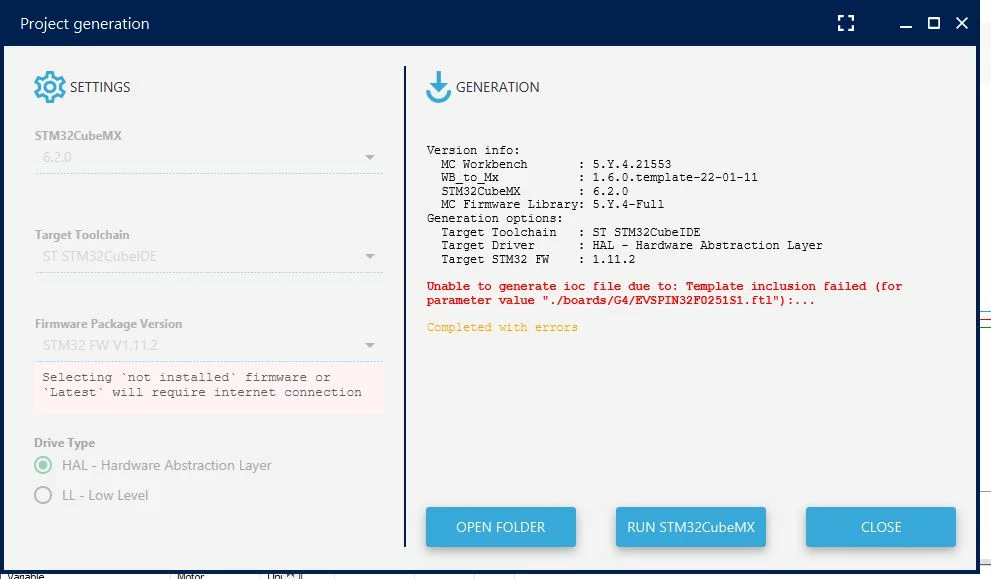

when i tried update motor parameter and Generate code is show some error (image attached) .

if choose the only update option then code generates but motor parameter remain same.

Need some help
